Bosch DEM66AC00B Hood

Technical data
Product group Hood
Product name / Commercial code DEM66AC00B
Nominal power of the lighting system W_L (2009/125/EC) 6.0 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 414 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 174 lux
Internal article number DEM66AC00B
EAN code 4.24201E+12
Basic color of product N/A
Color body Silver
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 159.5 W
Material chimney
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 352.0 m³/h
Material body Lacquered
Time increase factor f (2009/125/EC) 1.1
Typology Built-in/Built-under
Type of control mechanical
Installation type Built-in
Front panel options N/A
Motor location Integrated motor in hood body
Air circulation Convertible
Fuse protection 10:00 AM
Voltage 220-240 V
Frequency 50; 60 Hz
Length of electrical supply cord 150.0 cm
Plug type GB plug
Height of the appliance mm
Height of the packed product 510 mm
Width of the packed product 670 mm
Depth of the packed product 330 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation mm
Maximum width for installation mm
Depth for installation mm
Gross weight 13.3 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 402 mm
Minimum chimney height in mm (exhaust.) 402 mm
Maximum chimney height in mm (recirc.) 402 mm
Minimum chimney height in mm (recirc.) 402 mm
Total annual energy consumption 68.4 kWh/annum
Energy efficiency index (2010/30/EC) 64.30%
Fluid Dynamic Efficiency (2010/30/EC) 25.4
Fluid Dynamic Efficiency class (2010/30/EC) B
Lighting efficiency (2010/30/EC) 29.0 lux/Watt
Lighting efficiency class (2010/30/EC) A
Grease filtering efficiency (2010/30/EC) 76.00%
Grease filtering efficiency class (2010/30/EC) C
Maximum Air flow 625 m³/h
Minimum air flow 256 m³/h
Maximum Air flow 625 m³/h
Air flow boost (2010/30/EC) m³/h
Sound power at max. speed (2010/30/EC) 70 dB
Sound power at min. speed (2010/30/EC) 49 dB
Power consumption in standby mode (2010/30/EC) W
Power consumption in off-mode - NEW (2010/30/EC) W
Noise level 70 dB(A) re 1 pW
Noise level with boost position dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No

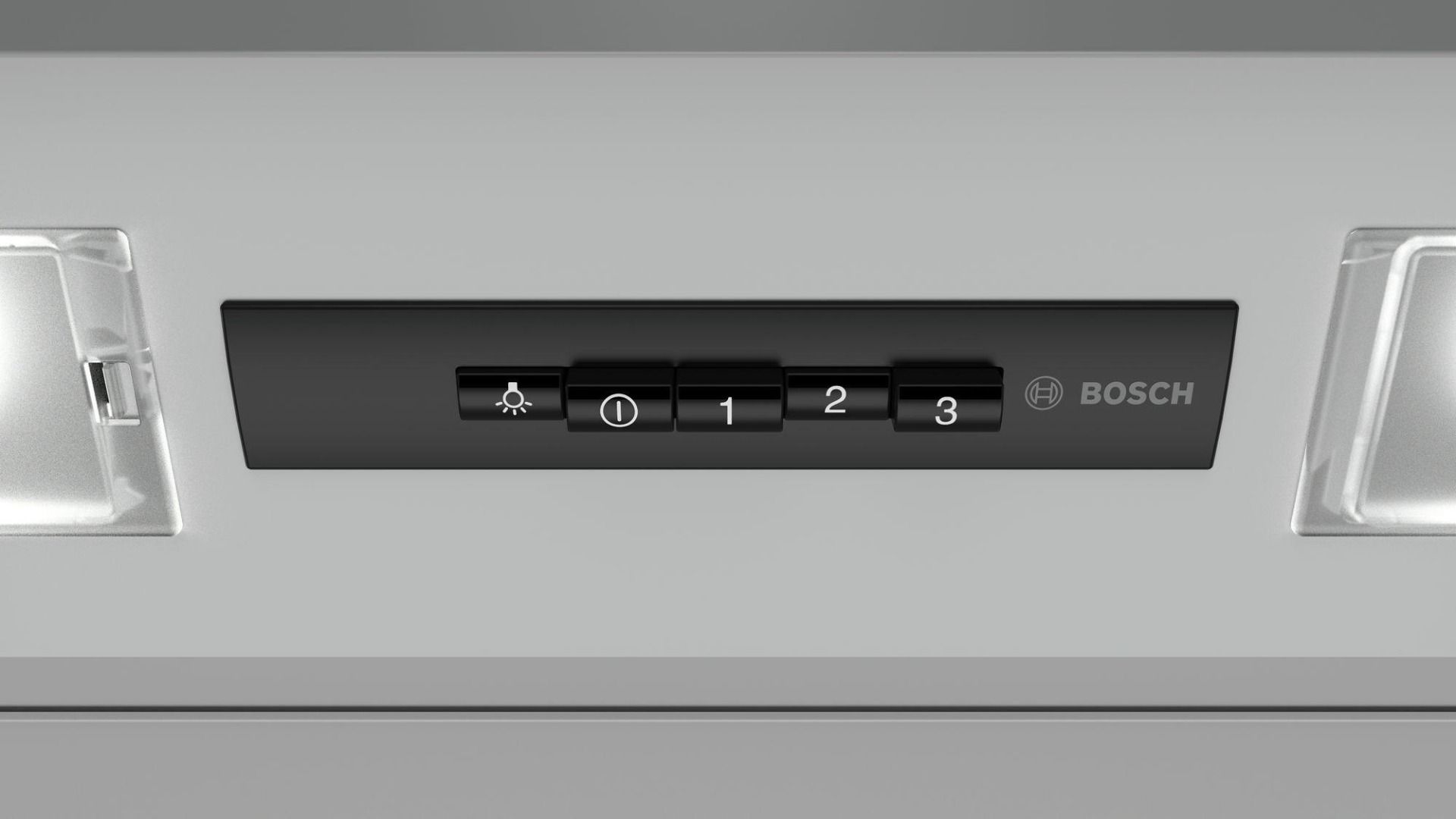

Type of manual control devices Push buttons
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 250 W
Maximum output air extraction 625 m³/h
Boost position air extraction m³/h
Maximum output recirculating air 416 m³/h
Boost position output recirculating m³/h

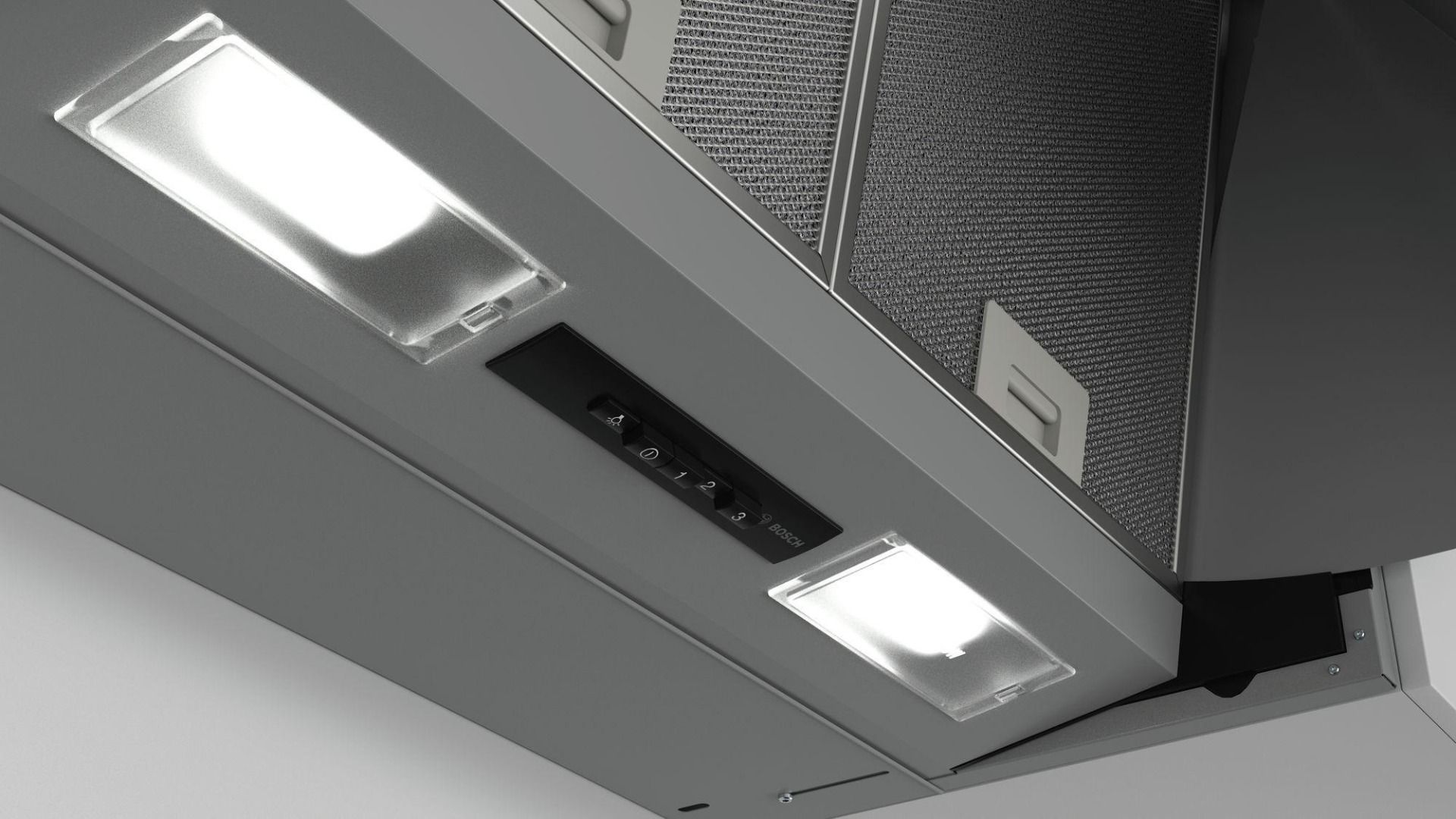

Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps 6 W
Total luminance 188 lux

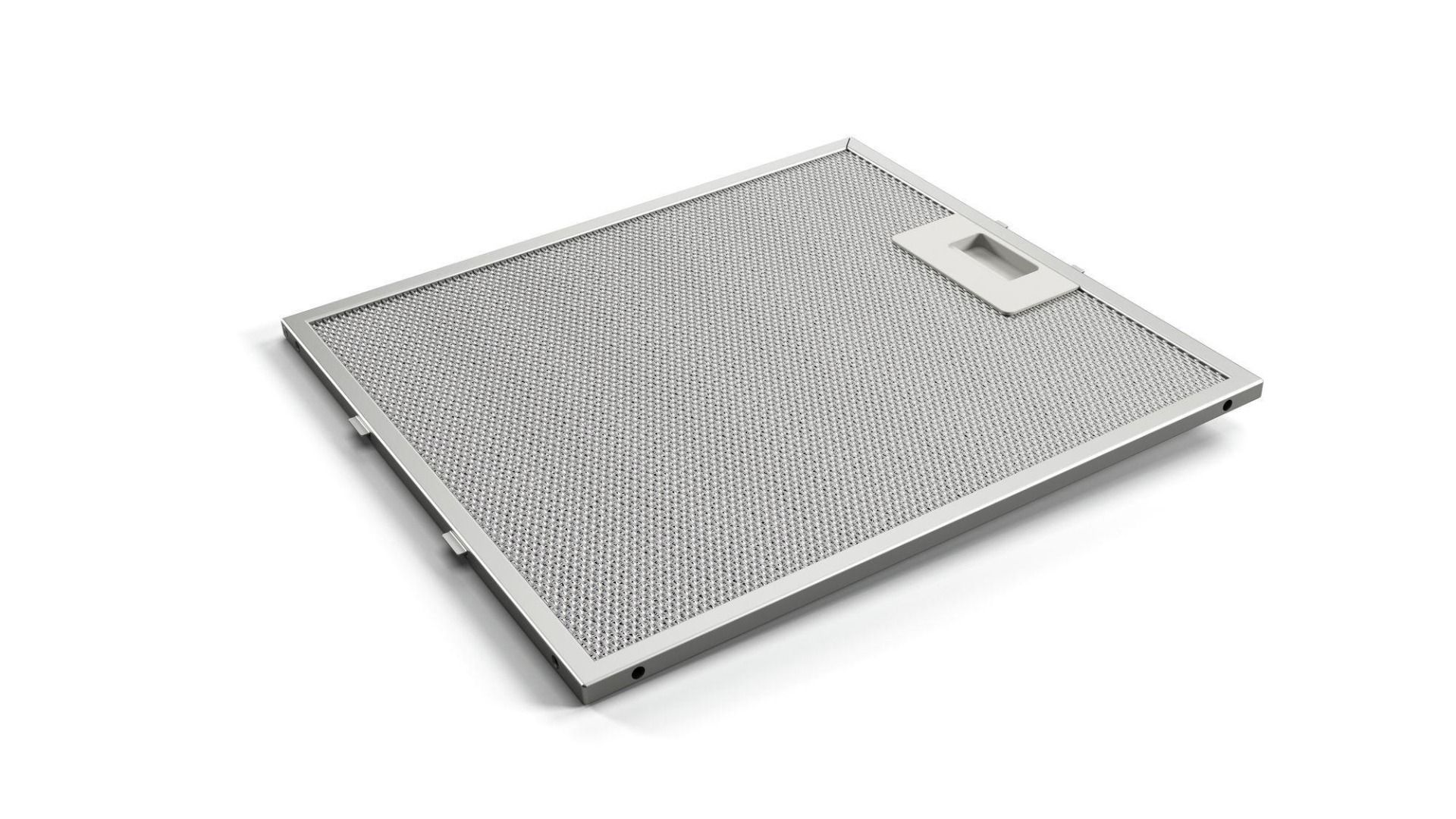

Grease filter material Washable aluminium
Diameter of air outlet 150 / 120 mm
Grease filter type Kassette
No-return airflow flap Yes
Odour filter No
Number of speed settings 3
Type of lamps used
Included user manuals
Included accessories
Optional accessories DWZ0IM0A0
Product image MCSA02018386_STP_DEM63AC00_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Sound power boost (2010/30/EC) dB
Design Integrated hoods
Delay Shut off modes min
