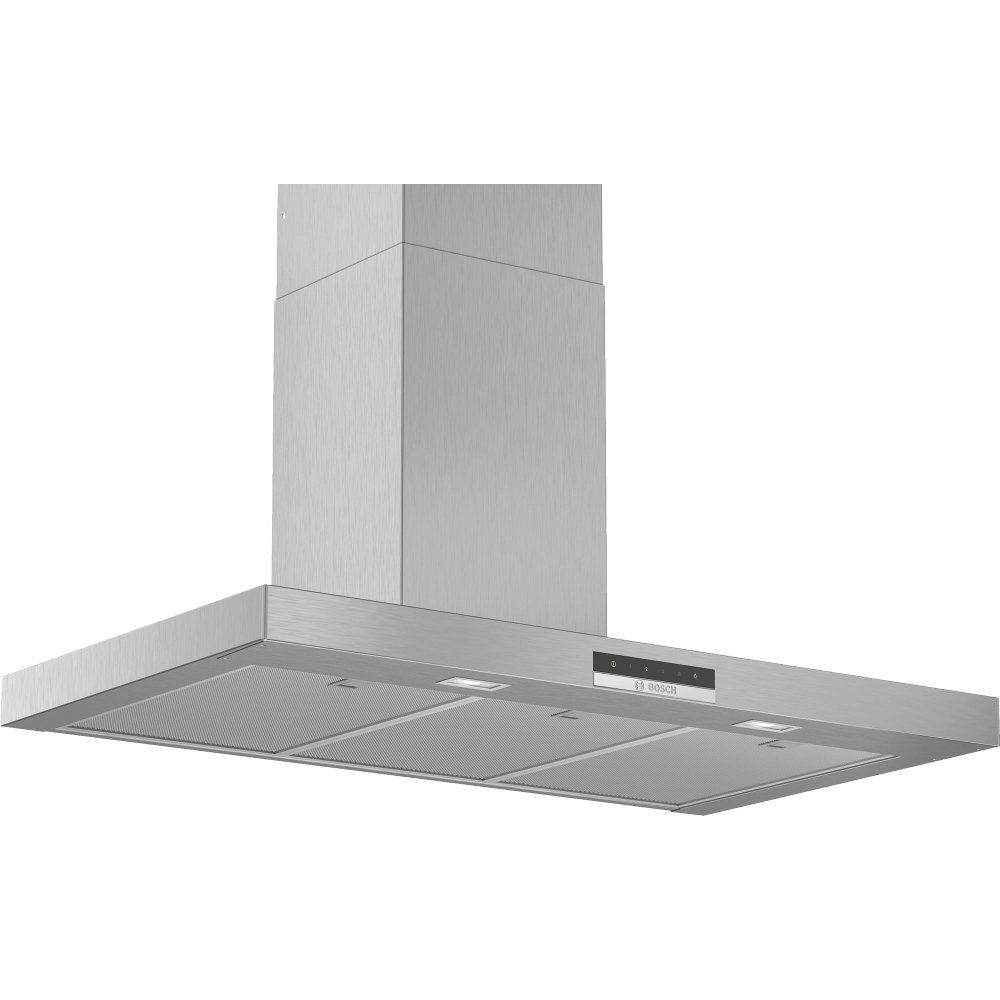

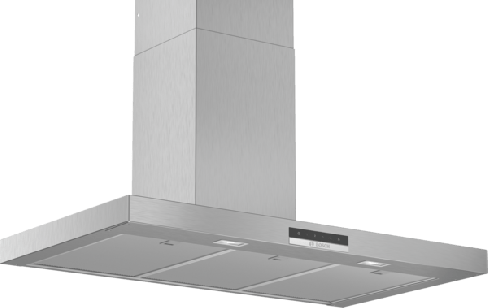

Bosch DWB96DM50B Hood

Series 4, Wall-mounted cooker hood,
90 cm, Stainless steel
DWB96DM50B

Box design hood: performance and
matching kitchen design complete in one
hood.
● Especially silent: maximum hood performance, minimum
noise.

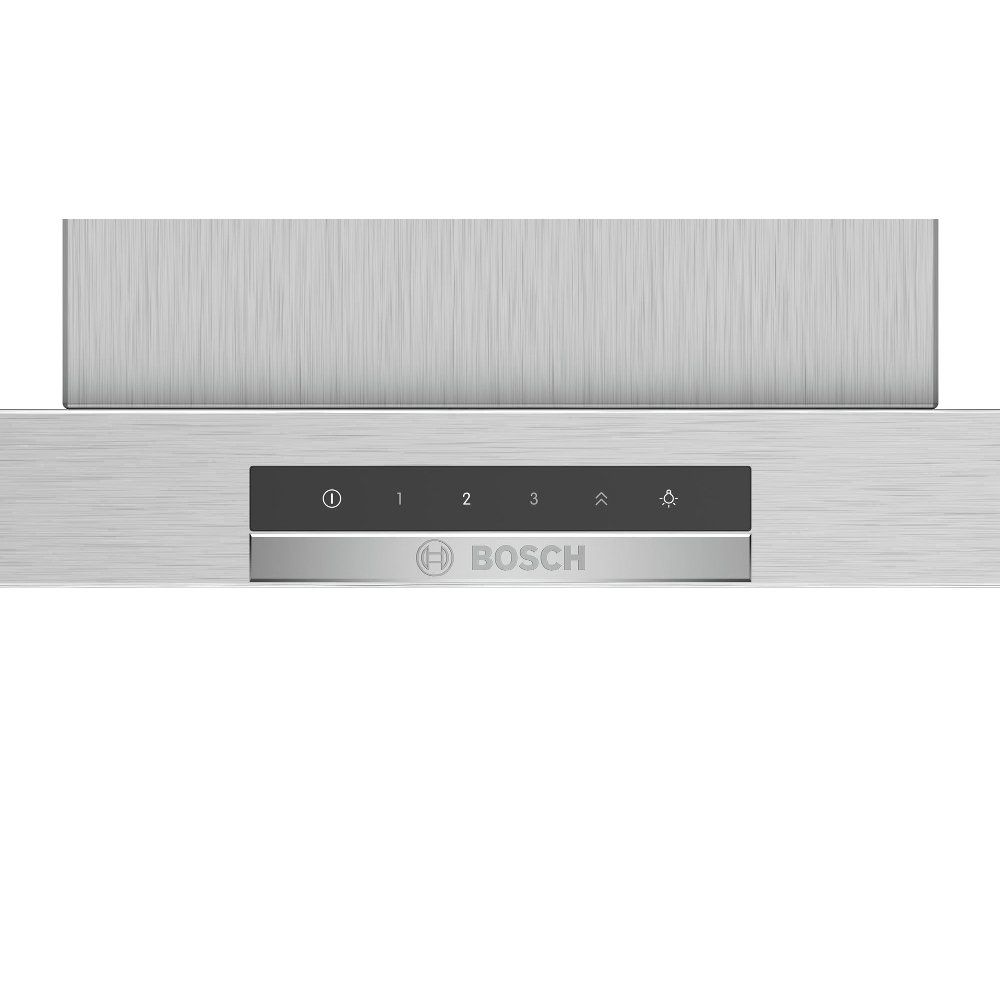

● TouchSelect control: Quickly select hood settings via touch.

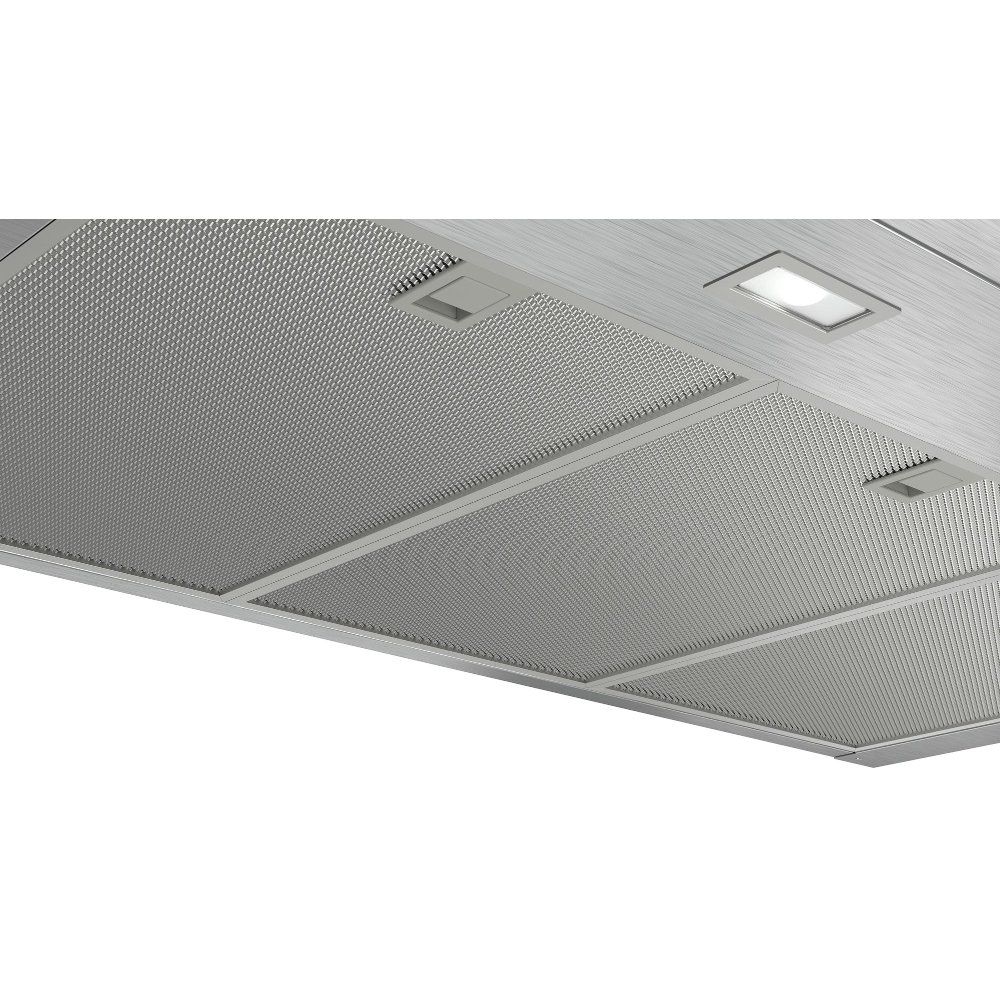

● LED Illumination: The energy-saving lighting provides bright
and clear lighting for the hob area.
● Intensive speed setting: removes strong kitchen odours
quickly and effectively.
● An impressive extraction rate of m3/h ensures this hood will
have your kitchen odour free in no time.
Technical Data
Typology : Wall-mounted
Length of electrical supply cord : 130.0 cm
Height of the chimney : 583-912/583-1022 mm
Height of the product : 53 mm
Minimum distance above an electric hob : 550 mm
Minimum distance above a gas hob : 650 mm
Net weight : 12.7 kg
Type of control : Electronic
Maximum output air extraction : 372 m³/h
Boost position output recirculating : 441 m³/h
Maximum output recirculating air : 337 m³/h
Boost position air extraction : 604 m³/h
Number of lights (Stck) : 2
Noise level : 60 dB(A) re 1 pW
Diameter of air outlet : 120 / 150 mm
Grease filter material : Washable aluminium
EAN code : 4242005051120
Connection rating : 220 W
Fuse protection : 10 A
Voltage : 220-240 V
Frequency : 50; 60 Hz
Plug type : GB plug
Installation type : Wall-mounted
Optional accessories
DHZ1225 : Chimney extension 1000 mm
DHZ1235 : Chimney extension 1500 mm
DHZ9551 : Brushed steel back panel
DWZ0DX0A0 : Standard odor filter (replacement)
DWZ0XX0J0 : Long Life recirculation kit
DWZ1DX1I4 : Clean Air Standard recirculation kit
DWZ1DX1I6 : Clean Air Plus recirculation kit
DWZ1FX5C6 : Clean Air Plus recirc. kit external
DZZ1XX1B6 : Clean Air Plus odor filter (replacement)
