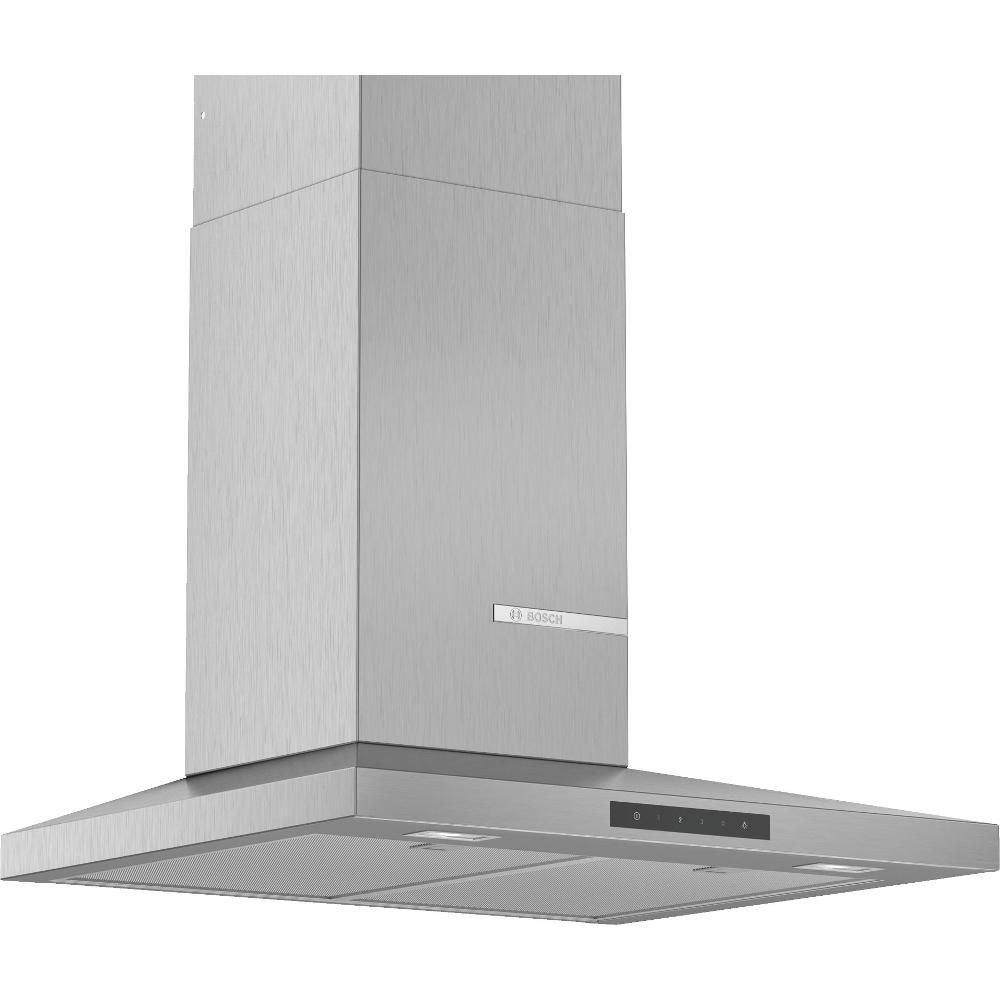

Bosch DWQ66DM50B Hood

Model No:
DWQ66DM50B
Dimensions:
676-1000
mm (h)  x
600
mm (w)  x
500
mm (d)
Availability:
This product is available to order subject to availability from the manufacturer. After placing your order, we will contact you with an estimated delivery date by the end of the next working day (Mon-Fri) or call 01273 628618 (opt.1) for more details.
£519.99
  • 60cm PYRAMID DESIGN HOOD
  • Colour: Stainless Steel
  • In Stock
  • Sliding switch control
  • LED Lighting
  • 60cm Wide
  • A
    Energy Rating
  • 2 Year Warranty

For over 125 years the Bosch name has been known for engineering excellence. Customers choose Bosch for their appliances because they are known for quality, reliability and great performance. There are no gimmicks or frills built into these products, just pure, clean, clinical lines and functional simplicity.

Bosch DWQ66DM50B Hood
Bosch DWQ66DM50B Hood Bosch DWQ66DM50B Hood Bosch DWQ66DM50B Hood Bosch DWQ66DM50B Hood

Technical data
Product group Hood
Product name / Commercial code DWQ66DM50B
Nominal power of the lighting system W_L (2009/125/EC) 3.5 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 415 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 242 lux
Internal article number DWQ66DM50B
EAN code 4.24201E+12
Basic color of product N/A
Color body Stainless steel
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 120.3 W
Material chimney Stainless steel
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 319.4 m³/h
Material body Stainless steel
Time increase factor f (2009/125/EC) 0.9
Typology Wall-mounted
Type of control Electronic
Installation type Built-in
Front panel options N/A
Motor location Integrated motor in hood chimney
Air circulation Convertible
Fuse protection 10:00 AM
Voltage 220-240 V
Frequency 50; 60 Hz
Length of electrical supply cord 130.0 cm
Plug type GB plug
Height of the appliance 94 mm
Height of the packed product 490 mm
Width of the packed product 650 mm
Depth of the packed product 730 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation mm
Maximum width for installation mm
Depth for installation mm
Gross weight 15.6 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 1006 mm
Minimum chimney height in mm (exhaust.) 676 mm
Maximum chimney height in mm (recirc.) 1116 mm
Minimum chimney height in mm (recirc.) 676 mm
Total annual energy consumption 41.7 kWh/annum
Energy efficiency index (2010/30/EC) 50.20%
Fluid Dynamic Efficiency (2010/30/EC) 30.6
Fluid Dynamic Efficiency class (2010/30/EC) A
Lighting efficiency (2010/30/EC) 69.1 lux/Watt
Lighting efficiency class (2010/30/EC) A
Grease filtering efficiency (2010/30/EC) 87.00%
Grease filtering efficiency class (2010/30/EC) B
Maximum Air flow 411 m³/h
Minimum air flow 259 m³/h
Maximum Air flow 411 m³/h
Air flow boost (2010/30/EC) 645.0 m³/h
Sound power at max. speed (2010/30/EC) 62 dB
Sound power at min. speed (2010/30/EC) 50 dB
Power consumption in standby mode (2010/30/EC) 0.26 W
Power consumption in off-mode - NEW (2010/30/EC) W
Noise level 62 dB(A) re 1 pW
Noise level with boost position 70 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No
Type of manual control devices touch control
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 215 W
Maximum output air extraction 411 m³/h
Boost position air extraction 644 m³/h
Maximum output recirculating air 337 m³/h
Boost position output recirculating 441 m³/h
Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps W
Total luminance 242 lux
Grease filter material Washable aluminium
Diameter of air outlet 120 / 150 mm
Grease filter type Kassette
No-return airflow flap No
Odour filter No
Number of speed settings
Type of lamps used LED
Included user manuals
Included accessories
Optional accessories DHZ1225, DHZ1235, DHZ6550, DHZ6551, DWZ0DX0A0, DWZ0DX0U0, DWZ0XX0J0, DWZ1DX1B4, DWZ1DX1I4, DWZ1DX1I6, DWZ1FX5C6, DWZ1FX5D1, DZZ0XX0P0, DZZ1XX1B6
Product image MCSA02002581_DWQ66DM50_ChimneyHood_Bosch_STP_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Sound power boost (2010/30/EC) 70 dB
Design Wall chimney hoods
Delay Shut off modes min
Bosch DWQ66DM50B 60Cm A Rated Slim Pyramid Design Hood - Stainless Steel
Slim Pyramid hood: performance and matching design in your kitchen. TouchSelect control: quick touch-control selection of desired settings and light. An impressive extraction rate of 610 m3/h ensures this hood will have your kitchen odour free in no time. Silent: maximum extractor performance with little noise
More Information
Product Name : Bosch DWQ66DM50B Hood
Colour : Stainless Steel
Stock Status : In Stock
Control Type : Sliding switch control
Lighting : LED Lighting
Manufacturer : Bosch
Size : 60cm Wide
Energy Rating : [[A2]] Energy Rating
Warranty : 2 Year Warranty
