Bosch PUG61RAA5B Hob

Bosch PUG61RAA5B (A) 60Cm Induction Hob Black 9 Power Levels

Plug + Play
Plug + Play induction hobs are easily installed into an existing plug socket. It’s worth noting that as these products are plugged into mains electric, the nominal power is limited to 3.7kW. This means when cooking with more than two pots at the same time, the hob triggers an automatic power management, which may be inconvenient for large households that frequently cook larger meals with many pots at the same time. For higher power output, please select a hob without plug/with fixed wiring.

PowerBoost (Induction)
When you want to get quick and easy meals on the table even faster, PowerBoost can help. This practical feature adds a boost of power for ultra-quick heating. Use it on your induction hob to boil large quantities of water – and heat almost 35% faster compared to the highest power level.

QuickStart
The QuickStart function detects where you have placed the pot and automatically displays the corresponding cooking zone on the control interface. You can get started straight away and select the desired cooking level for your pot without delay.

Induction Technology
Induction hobs generate heat only where it is needed – in the base of the pan. What does this mean for you? More safety and more convenience. The lower temperature keeps both big and little hands safe from burning. Not only that, but an induction hob brings two litres of water to a boil twice as fast as a glass-ceramic hob, which also saves a great deal of energy.

TouchSelect
With the TouchSelect control you can regulate the desired cooking zone easily. Simply select the power level you need.

Technical specs

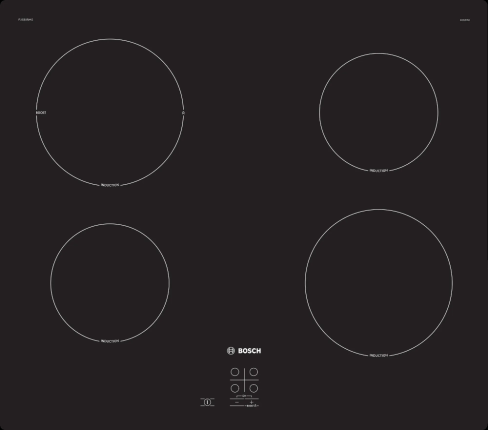

Flexibility of cooking zones
60 cm: space for 4 pots or pans.
Cooking zone front left: 145 mm, 1.4 KW
Cooking zone rear left: 180 mm, 1.8 KW (max. power 3.1 KW)
Cooking zone rear right: 145 mm , 1.4 KW
Cooking zone front right: 180 mm, 1.8 KW
Usage convenience
TouchSelect Basic: control the power with imprinted +/- touch buttons.
Variable 9-stage power settings for each zone: precisely adapt the heat with 9 power levels.
Time saving + efficiency
PowerBoost function in the front left zone
: boil water faster thanks to 50% more energy than at the highest standard level.
QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off).
Quick Stop: quickly switch off a cooking zone with one longer touch.
Design
Frameless design
Safety
Control panel lock: prevent unintended activation of the hob.
Main on/off switch: switch off all cooking zones at the touch of a button.
Automatic safety shut off: for safety reasons, heating stops after a preset time if not used (possible to customise).
Installation
Dimensions of the product (HxWxD mm): 51 x 592 x 522

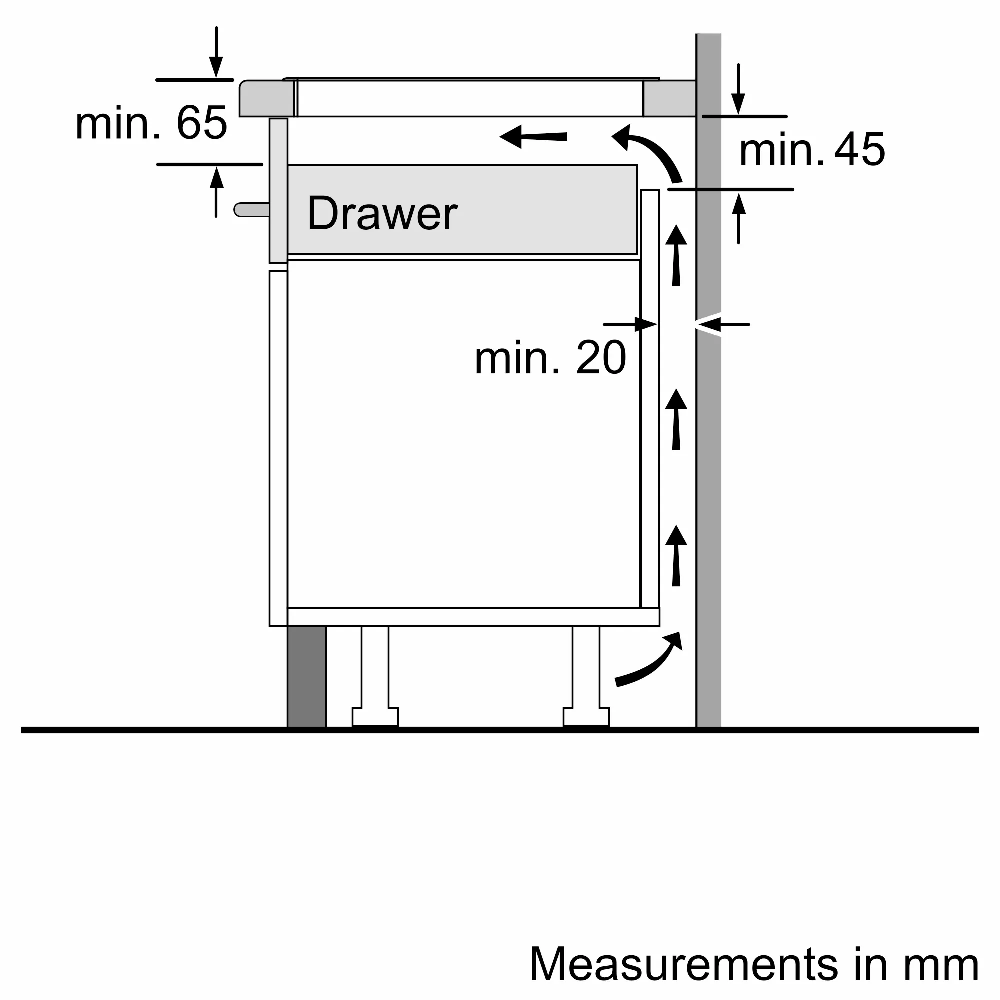

Required niche size for installation (HxWxD mm) : 51 x 560 x (490 - 500)
Min. worktop thickness: 16 mm
Connected load: 3.7 KW
Power management options for 16A, 13A or 10A connection: limit the maximum power if needed (depends on fuse protection of electric installation).
Power cord 1.1 m UK 3 pin plug: plug and play, no electrician required for installation.
This hob is equipped with a UK 3 pin plug for an easy plug + play installation. The plug limits the maximum power output to 3.7 KW. For higher power output, please select a hob without plug and ensure installation is carried out by a qualified electrician.
Technical details
Product series: Serie | 2
Construction type: Built-in
Type of control: Electronic
Type of control settings: EasyTouch, front
Energy input: Electric
Total number of positions that can be used at the same time: 4
Number of gas burners
Number of electric cooking zones: 4
Number of electric plates
Number of radiant plates
Number of halogen plates
Number of induction plates: 4
Number of electric warming zones
Basic surface material: Ceramic
Main colour of product: Black
Basic color of product: Black
Type of frame: Frameless
Electrical connection rating: 3700 W
Voltage: 220-240 V
Frequency: 50; 60 Hz
Approval certificates: AENOR, CE
Length of electrical supply cord: 110 cm
Plug type: GB plug
Width of the product: 592 mm
Height of the product: 51 mm
Depth of the product: 522 mm
Height of the packed product: 126 mm
Width of the packed product: 753 mm
Depth of the packed product: 608 mm
Minimum niche height: 490 mm
Maximum niche height: 500 mm
Minimum niche width: 560 mm
Maximum niche width: 560 mm
Niche depth: 51 mm
Net weight: 10.1 kg
Gross weight: 11.3 kg
Application of EU Energy Label Regulation: No
Energy consumption of 1st heating element calculated per kg: 185.0 Wh/kg
Energy consumption of 3rd heating element calculated per kg: 175.0 Wh/kg
Energy consumption of 5th heating element calculated per kg: 185.0 Wh/kg
Energy consumption of 7th heating element calculated per kg: 175.0 Wh/kg
Energy Smart appliance, able to optimise consumption pattern (2017/1369/EU): No
Capability of wireless communication: No
SIM card slot available: No
Kind of remote access: No, only direct access
Possibility of remote upgrade: No
Possibility of remote update for maintenance: No
Automatic programmes: No
Location of the heating element: front left
Location of 2nd heating element: center left
Location of 3rd heating element: back left
Location of 4th heating element: middle back
Location of 5th heating element: back right
Location of 6th heating element: center right
Location of 7th heating element: front right
Location of 8th heating element: front middle / central
Location of 9th heating element: front centre/cent
Type of the heating element: Induction heating
Type of 3rd heating element: Induction heating
Type of 7th heating element: Induction heating
Dimension of the heating element: 145 mm
Dimension of 3rd heating element: 180 mm
Dimension of 5th heating element: 145 mm
Dimension of 7th heating element: 180 mm
Power of the heating element: 1.4 W
Power of 3rd heating element: 1.8 W
Power of 5th heating element: 1.4 W
Power of 7th heating element: 1.8 W
Power on indicator: No
Type of regulation: Stepless energy regulated
Type of lid: Without
Ignition system: No
Residual heat indicator: Separate
Main on/off switch: Yes
Safety device: childproof lock, Power management function, Safety time-switch-off
Timer: No
Possibility to combine cooking zones/cooking areas: No
Time-setting options: No delay options
