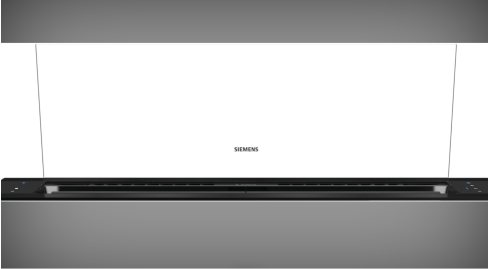

Siemens LD98WMM60B Hood
Model No:
LD98WMM60B
Availability:
This product is available to order subject to availability from the manufacturer.
After placing your order, we will contact you with an estimated delivery date by
the end of the next working day (Mon-Fri) or call 01273 628618 (opt.1) for more details.
£2,209.99
- Colour: Black/Clear Glass
- 71db max noise level
- Touch control
- Energy Rating
- 2 Year Warranty
Siemens LD98WMM60B glassdraftAir Hoods 90cm Worktop ventilation, clear glass design, seamless
"90cm Worktop ventilation,
clear glass design,
seamless installation with 90cm framed hobs,
New Guided Air,
hob-hood control,
Home Connect,
climateControl Sensor,
filter service position,
remote mountable motor up to 3m.
Optional 90cm Seamless Installation Kit: LZ29WWY12 Optional 90cm cleanAir Plus Recirculation Kit: LZ21WWI17 Optional ducting accessories can be found under Venting Hobs"
Q700, Downdraft hood, 90 cm, clear glass
LD98WMM60B
The seamlessly designed glassdraftAir is only visible when in use, with an impressive performance thanks to the new Guided Air technology.
iQdrive motor - The quiet, high-performance motor ensures efficient removal of odours and steam.
iQdrive motor keeps your kitchen quiet and vapour free.
cookConnect – Use your hob to control your extractor hood’s power level and lighting.
voiceControl – Control hood functions and lighting using your voice.
Home Connect – The app that makes your hood work smarter.
Product group Hood
Brand Siemens
Product name/family
Product name / Commercial code LD98WMM60B
Internal article number LD98WMM60B
EAN code 4.242E+12
Colour Black
Basic color of product Black
Color body Black
Color chimney
Material chimney
Material of the body Glass
Typology Downdraft
Control panel Electronic
Construction type Built-in
Installation type Built-in
Controls touch control
Front panel options N/A
Motor location Integrated motor in hood body
Ventilation type Convertible
Connection Rating 300 W
Fuse protection 10:00 AM
Nominal power 220-240 V
Frequency 50; 60 Hz
Approval certificates CE
E17D UKCA marking
VDE
Length of electrical supply cord 130 cm
Plug type GB plug
Height of product, without chimney mm
Height of the appliance 709-959/709-959 mm
Width of the appliance 912 mm
Dimensions 140 mm
Height of the packed product 610 mm
Width of the packed product 1140 mm
Depth of the packed product 870 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation 854 mm
Maximum width for installation 854 mm
Depth for installation 123 mm
Weight 41.7 kg
Gross weight 48.1 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 959 mm
Minimum chimney height in mm (exhaust.) 709 mm
Maximum chimney height in mm (recirc.) 959 mm
Minimum chimney height in mm (recirc.) 709 mm
Application of EU Energy Label Regulation Yes
Energy efficiency rating A
Total annual energy consumption 37.8 kWh/annum
Fluid Dynamic Efficiency (2010/30/EC) 30
Fluid Dynamic Efficiency class (2010/30/EC) A
Lighting efficiency (2010/30/EC) lux/Watt
Lighting efficiency class (2010/30/EC) -
Grease filtering efficiency (2010/30/EC) 82.80%
Grease filtering efficiency class (2010/30/EC) C
Maximum Air flow 519 m³/h
Maximum Air flow 519 m³/h
Air flow boost (2010/30/EC) 833.3 m³/h
Sound power at max. speed (2010/30/EC) 62 dB
Sound power at min. speed (2010/30/EC) 41 dB
Power consumption in standby mode (2010/30/EC) 0.41 W
Power consumption in off-mode - NEW (2010/30/EC) W
Noise level 62 dB(A) re 1 pW
Noise level 71 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication Yes, embedded
Broadband technology N/A
SIM card slot available No
Communication technology wifi
Remote access LAN
Possibility of remote upgrade No
Possibility of remote update for maintenance Yes
Possibility of Voice Control Yes, with optional accessory
Type of manual control devices touch control
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 300 W
Max. air extraction 519 m³/h
Boost position air extraction 833 m³/h
Max. recirculation 456 m³/h
Boost position output recirculating 596 m³/h
Light Control Type
Number of lights (Stck)
Total power of the lamps W
Total luminance lux
Grease filter material Washable stainless steel
Diameter of air outlet 150 mm
Grease filter type Kassette
No-return airflow flap No
Odour filter No
Number of speed settings 3-stage + 2 intensive
Type of lamps used
Included accessories
Optional accessories HZ9VDSB1, HZ9VDSB2, HZ9VDSI0, HZ9VDSI1, HZ9VDSM1, HZ9VDSM2, HZ9VDSS1, LZ21WWB16, LZ21WWI17, LZ21WWJ12, LZ21WWM11, LZ29WWY12, LZ31WWX11, LZ31XXX11
Product image 17645848_LD98WMM60_STP_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Product class iQ700
Height of the chimney mm
Boost position Yes
Maximum Air flow 519.4 m³/h
Minimum air flow 229.3 m³/h
Energy efficiency index (2010/30/EC) 48.10%
Sound power boost (2010/30/EC) 71 dB
Time increase factor f (2009/125/EC) 0.9
Energy efficiency index (2010/30/EC) 48.10%
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 343.5 m³/h
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 361 Pa
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 115.0 W
Nominal power of the lighting system W_L (2009/125/EC) W
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) lux
Design Downdraft hoods
Remote information system No
Home Connect Features Remote Monitoring and Control
Home Connect Yes
"90cm Worktop ventilation,
clear glass design,
seamless installation with 90cm framed hobs,
New Guided Air,
hob-hood control,
Home Connect,
climateControl Sensor,
filter service position,
remote mountable motor up to 3m.
Optional 90cm Seamless Installation Kit: LZ29WWY12 Optional 90cm cleanAir Plus Recirculation Kit: LZ21WWI17 Optional ducting accessories can be found under Venting Hobs"
Q700, Downdraft hood, 90 cm, clear glass
LD98WMM60B
The seamlessly designed glassdraftAir is only visible when in use, with an impressive performance thanks to the new Guided Air technology.
iQdrive motor - The quiet, high-performance motor ensures efficient removal of odours and steam.
iQdrive motor keeps your kitchen quiet and vapour free.
cookConnect – Use your hob to control your extractor hood’s power level and lighting.
voiceControl – Control hood functions and lighting using your voice.
Home Connect – The app that makes your hood work smarter.
Product group Hood
Brand Siemens
Product name/family
Product name / Commercial code LD98WMM60B
Internal article number LD98WMM60B
EAN code 4.242E+12
Colour Black
Basic color of product Black
Color body Black
Color chimney
Material chimney
Material of the body Glass
Typology Downdraft
Control panel Electronic
Construction type Built-in
Installation type Built-in
Controls touch control
Front panel options N/A
Motor location Integrated motor in hood body
Ventilation type Convertible
Connection Rating 300 W
Fuse protection 10:00 AM
Nominal power 220-240 V
Frequency 50; 60 Hz
Approval certificates CE
E17D UKCA marking
VDE
Length of electrical supply cord 130 cm
Plug type GB plug
Height of product, without chimney mm
Height of the appliance 709-959/709-959 mm
Width of the appliance 912 mm
Dimensions 140 mm
Height of the packed product 610 mm
Width of the packed product 1140 mm
Depth of the packed product 870 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation 854 mm
Maximum width for installation 854 mm
Depth for installation 123 mm
Weight 41.7 kg
Gross weight 48.1 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 959 mm
Minimum chimney height in mm (exhaust.) 709 mm
Maximum chimney height in mm (recirc.) 959 mm
Minimum chimney height in mm (recirc.) 709 mm
Application of EU Energy Label Regulation Yes
Energy efficiency rating A
Total annual energy consumption 37.8 kWh/annum
Fluid Dynamic Efficiency (2010/30/EC) 30
Fluid Dynamic Efficiency class (2010/30/EC) A
Lighting efficiency (2010/30/EC) lux/Watt
Lighting efficiency class (2010/30/EC) -
Grease filtering efficiency (2010/30/EC) 82.80%
Grease filtering efficiency class (2010/30/EC) C
Maximum Air flow 519 m³/h
Maximum Air flow 519 m³/h
Air flow boost (2010/30/EC) 833.3 m³/h
Sound power at max. speed (2010/30/EC) 62 dB
Sound power at min. speed (2010/30/EC) 41 dB
Power consumption in standby mode (2010/30/EC) 0.41 W
Power consumption in off-mode - NEW (2010/30/EC) W
Noise level 62 dB(A) re 1 pW
Noise level 71 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication Yes, embedded
Broadband technology N/A
SIM card slot available No
Communication technology wifi
Remote access LAN
Possibility of remote upgrade No
Possibility of remote update for maintenance Yes
Possibility of Voice Control Yes, with optional accessory
Type of manual control devices touch control
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 300 W
Max. air extraction 519 m³/h
Boost position air extraction 833 m³/h
Max. recirculation 456 m³/h
Boost position output recirculating 596 m³/h
Light Control Type
Number of lights (Stck)
Total power of the lamps W
Total luminance lux
Grease filter material Washable stainless steel
Diameter of air outlet 150 mm
Grease filter type Kassette
No-return airflow flap No
Odour filter No
Number of speed settings 3-stage + 2 intensive
Type of lamps used
Included accessories
Optional accessories HZ9VDSB1, HZ9VDSB2, HZ9VDSI0, HZ9VDSI1, HZ9VDSM1, HZ9VDSM2, HZ9VDSS1, LZ21WWB16, LZ21WWI17, LZ21WWJ12, LZ21WWM11, LZ29WWY12, LZ31WWX11, LZ31XXX11
Product image 17645848_LD98WMM60_STP_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Product class iQ700
Height of the chimney mm
Boost position Yes
Maximum Air flow 519.4 m³/h
Minimum air flow 229.3 m³/h
Energy efficiency index (2010/30/EC) 48.10%
Sound power boost (2010/30/EC) 71 dB
Time increase factor f (2009/125/EC) 0.9
Energy efficiency index (2010/30/EC) 48.10%
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 343.5 m³/h
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 361 Pa
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 115.0 W
Nominal power of the lighting system W_L (2009/125/EC) W
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) lux
Design Downdraft hoods
Remote information system No
Home Connect Features Remote Monitoring and Control
Home Connect Yes
| Product Name : | Siemens LD98WMM60B Hood |
|---|---|
| Colour : | Black/Clear Glass |
| Noise Level : | 71db max noise level |
| Control Type : | Touch control |
| Manufacturer : | Siemens |
| Energy Rating : | [[A2]] Energy Rating |
| Warranty : | 2 Year Warranty |
