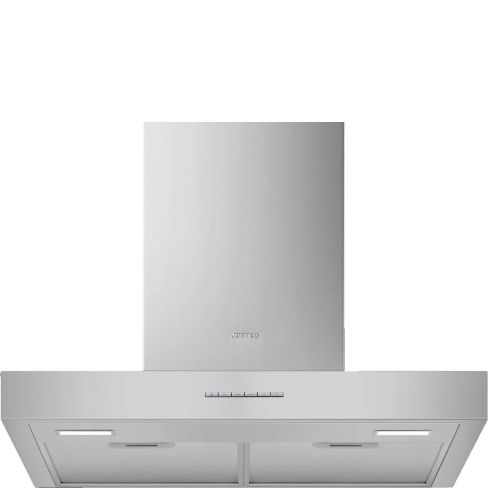

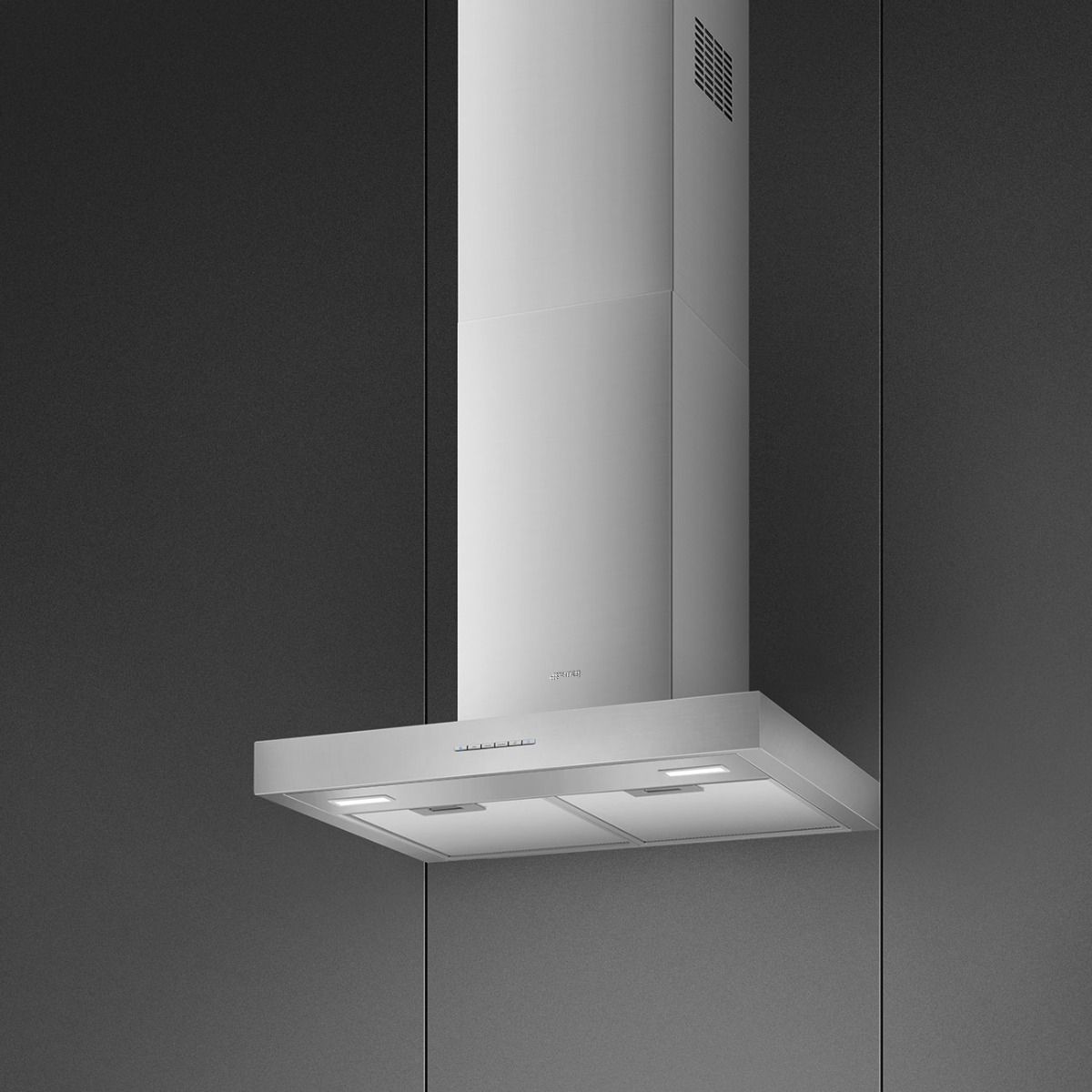

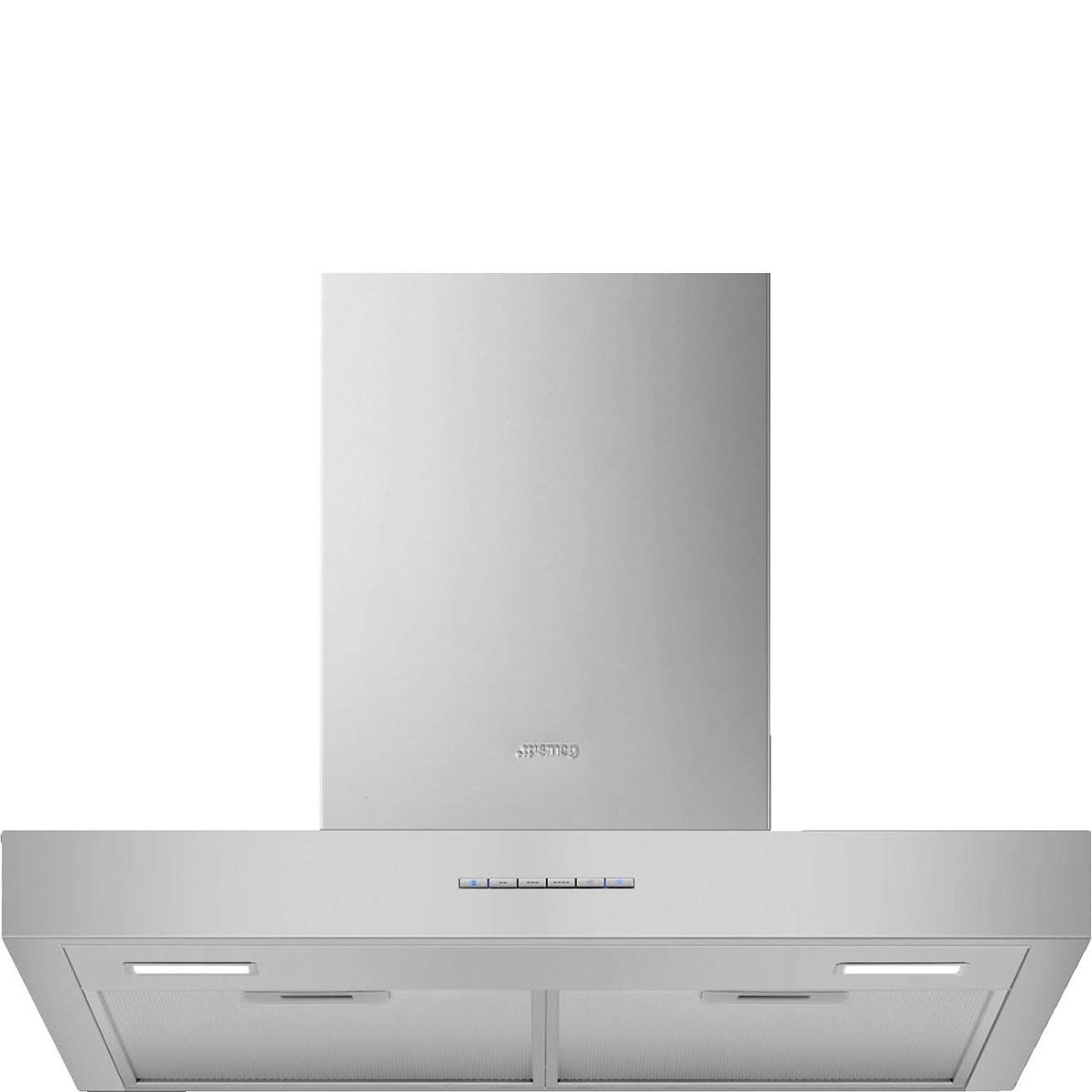

Smeg KBT600XE Chimney Hood

Smeg KBT600XE T Shape 60Cm Chimney Hood Stainless Steel
TYPE
Product family: Hood
Hood Type: Decorative wall hood
Hood width: 60 cm
Extraction: Expulsion
Electronic control: Yes
EAN code: 8017709286613
AESTHETICS
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Universal
Design: T flat
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically.
No. of speeds: 3
Intensive speed: Yes
24h air filter function: Yes
Time-setting options: Automatic switch-off
CONTROLS

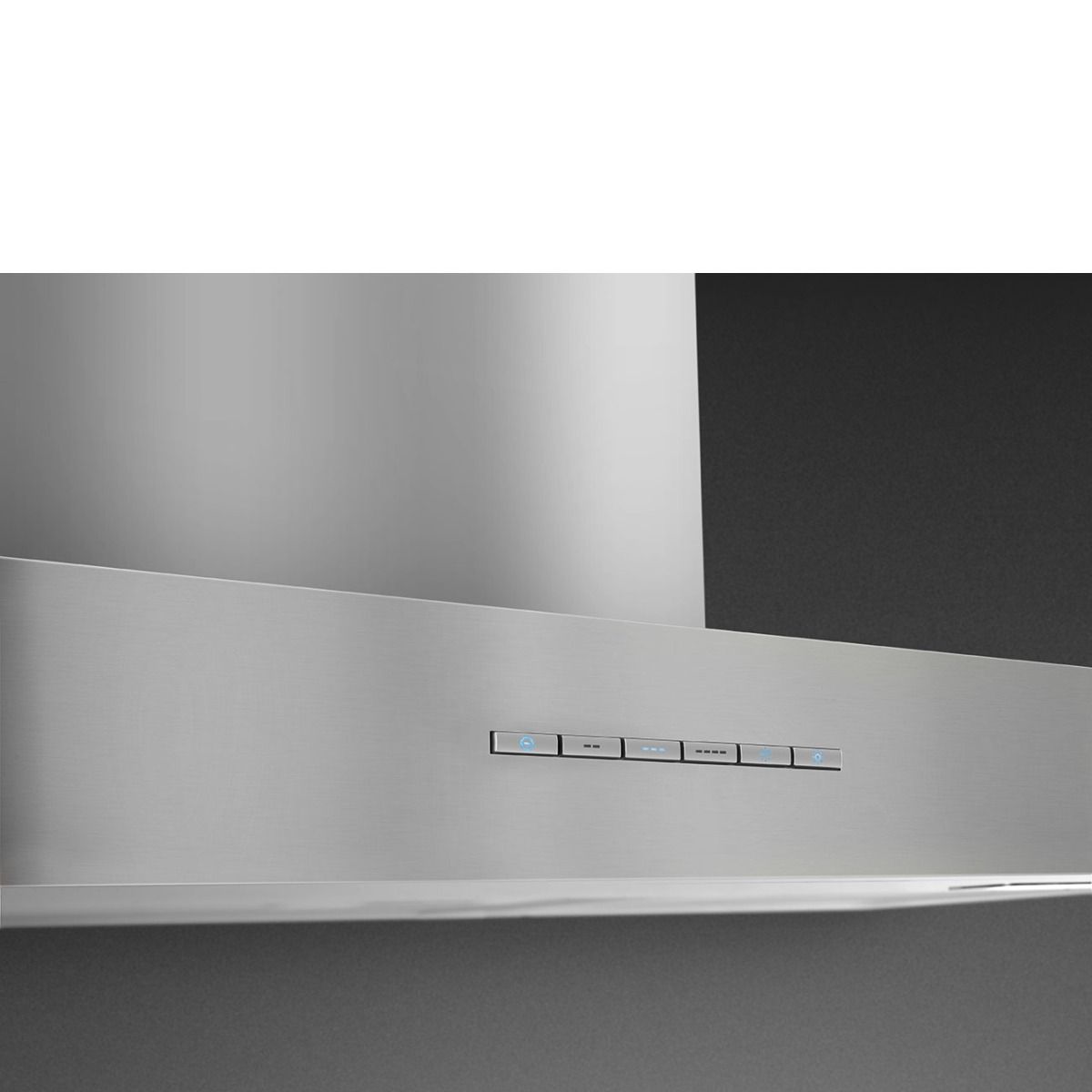

Control setting: Electronic buttons
TECHNICAL FEATURES
Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light power: 1,3 W
Light color temperature scale (°K): 3000 °K
Free outlet maximum capacity: 820 m³/h
Motor power: 230 W
No. of filters: 2
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Minimum distance from GAS hob: 650 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes
PERFORMANCE / ENERGY LABEL
Energy_Label_A-Right-Yellow_72dpi
Energy efficicency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 53 KWh/year
Fluid Dynamic Efficiency (FDE): 29.8
Lighting Efficiency (LE): 70.4 lux/W
Grease Filtering Efficiency (GFE): 79.7 %
Air flow at minumum speed (Qmin): 261 m³/h
Maximum extraction rate: 473 m³/h
Intensive extraction rate: 686 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 63 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 71 dB(A)
Power consumption in stand-by mode (Ps): 0.23 W
Time increase factor (F): 0.9
Energy Efficiency Index per first cavity: 52.0
Measured air flow rate at best efficiency point (Qbep): 395 m³/h
Measured air pressure at best efficiency point (Qbep): 451 Pa
Measured electric power input at best efficiency point (Wbep): 159 W
Normal Power of the light system (Wl): 3 W
Average illumination of the light on the cooking surface (Emiddle): 156 lux
Sound power level at highest setting (Lwa): 70 dB(A)
ELECTRICAL CONNECTION
Nominal power: 230 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 260 m³/h
Noise level IEC 60704-2-13: 49 dB(A)
Power: 132 W
SPEED 2
Extraction rate IEC 61591: 358 m³/h
Noise level IEC 60704-2-13: 57 dB(A)
Power: 152 W
SPEED 3
Extraction rate IEC 61591: 473 m³/h
Noise level IEC 60704-2-13: 64 dB(A)
Power: 175 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 686 m³/h
Noise level IEC 60704-2-13: 72 dB(A)
Power: 222 W
LOGISTIC INFORMATION

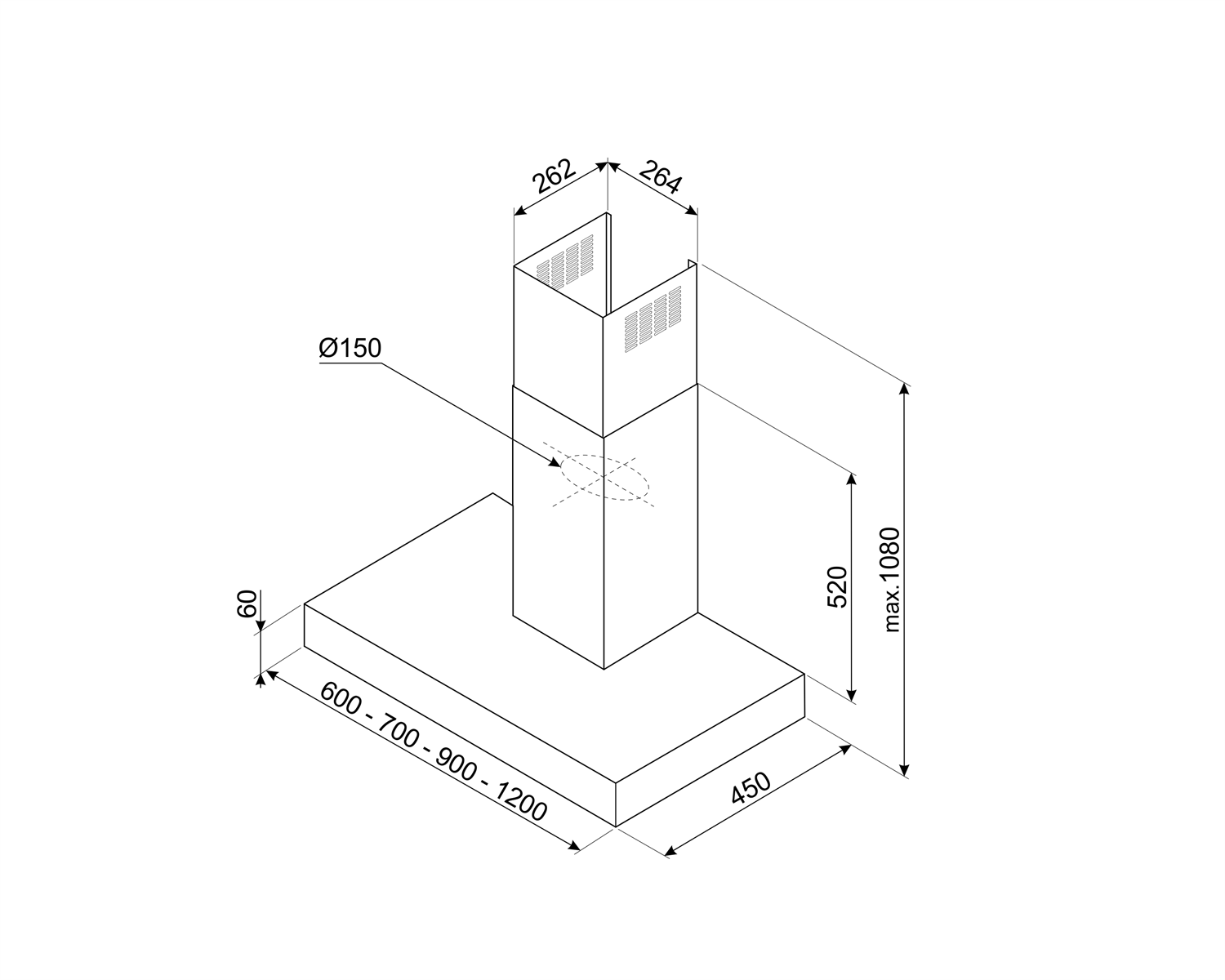

Dimensions of the product (mm): 520x600x450
Width: 600 mm
Depth (mm): 450 mm
Product Height (mm): 520 mm
Net weight (kg): 12.800 kg
