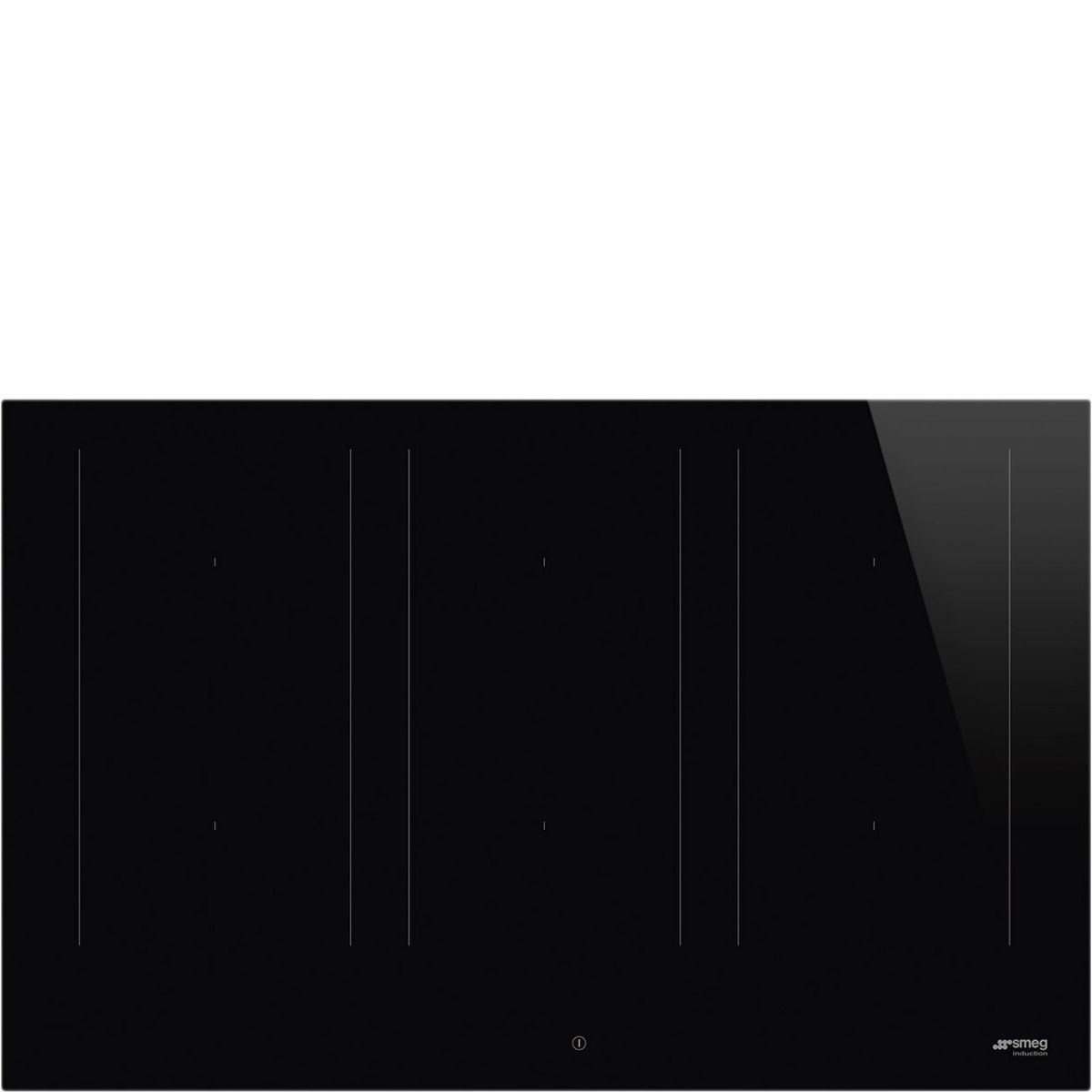

Smeg SIM3864D Hob
Model No:
SIM3864D
Dimensions:
53
mm (h) x
800
mm (w) x
510
mm (d)
Availability:
This product is available to order subject to availability from the manufacturer.
After placing your order, we will contact you with an estimated delivery date by
the end of the next working day (Mon-Fri) or call 01273 628618 (opt.1) for more details.
£1,529.00
- Colour: Black
- Residual heat indicators remain alight whilst hob is still hot
- Touch control
- Lrg W Hob 6 Zones-Flexible
- 2 Yr Warranty
Smeg SIM3864D 80cm Eclipse Induction Hob, Black Autovent 2.0
Hob Universale SIM3864D
Product Family
Hob
Aesthetics
Universale
Type
Induction
Dimensions
80 cm
Colour
Black
Built-in type
Ultra-low profile or Fully Flushed
AUTOVENT 2.0
Thanks to the AutoVent 2.0 system, it is possible to connect the hood to the hob so that the correct extraction is activated automatically based on the power of the hob or manually, directly from the hob. (* Compatable Smeg hood only)
MULTIZONE
The MultiZone function makes the cooking surface flexible and a gesture will be enough to connect two zones into a single larger one to use even the largest pots.
AUTO POT DETECTION
The Auto-pot detection function is designed to automatically recognize the position of pots with a minimum diameter of 9 cm, saving the user from having to activate the correct area.
Product family: hob
Dimensions: 80 cm
Type: Induction
Integrated type: Ultra low profile or completely flush
Power supply: Electric
AESTHETICS
Black colour
Finish: Glass
Aesthetics: Universal
Material: Glass
Type of glass: Ceramic eclipse
Control Setting Type: EVO Slider
Control knob position: Front
Slider: yes
Glass edge: Straight edge
Screen printing color: Gray
PROGRAM / FUNCTIONS
Total n. of cooking zones: 6
No. of induction cooking zones: 6
Time Setting Options: Auto Power Off
No. of cooking zones with booster: 6
No. of flexible zones: 3
Main on / off switch: yes
Power Levels: 9
Automatic vent 2.0: yes
OPTIONS
Worktop cutout: 490x860 mm
Multizone option: yes
Flexible zone type: Multizone
End of cooking timer: 6
Pause option: yes
Timer: 1
End of cooking alarm: yes
Remaining time indicator: yes
Limited power consumption mode: Yes Advance
Limited power consumption mode in W: 2400 to 11100 - 100 W step
Showroom Demo Option: Yes
Grill function: yes
Key Lock / Child Lock: Yes
Automatic keep warm function: yes
Bridge option: yes
Quick start: yes
Quick level selection: yes
COOKING AREAS
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front-center
4th zone position: Rear-center
5th zone position: Front right
6th zone position: Rear right
1st type of zone: Induction - Multizone
2nd type of zone: Induction - Multizone
3rd type of zone: Induction - Multizone
4th zone type: Induction - Multizone
5th type of zone: Induction - Multizone
6th type of zone: Induction - Multizone
Dimensions of the first zone: 24,0x18,0 cm
2nd zone dimensions: 24,0x18,0 cm
3rd zone dimensions: 24,0x18,0 cm
4th zone dimensions: 24,0x18,0 cm
Dimensions of the fifth zone: 24.0x18.0 cm
Dimensions of the sixth zone: 24.0x18.0 cm
Left multizone size: 38.5x23.0 cm
Multi-zone central size: 38.5x23.0 cm
Right Multizone Size: 38.5x23.0 cm
1st zone power: 2.10 kW
2nd zone power: 2.10 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
5th zone power: 2.10 kW
5th zone power: 2.10 kW
1st zone double booster power: 3.00 kW
2nd zone double booster power: 3.00 kW
3rd zone double booster power: 3.00 kW
1st zone booster power: 2.50 kW
4th zone double booster power: 3.00 kW
5th zone double booster power: 3.00 kW
6th zone double booster power: 3.00 kW
2nd zone booster power: 2.50 kW
3rd zone booster power: 2.50 kW
4th zone booster power: 2.50 kW
5th zone booster power: 2.50 kW
6th zone booster power: 2.50 kW
Left Multizone booster power: 3.70 kW
Multizone Booster Control Unit: 3.70 kW
Right Multizone booster: 3.70 kW
TECHNICAL FEATURES
Automatic setting based on plate size: yes
Permanent automatic detection of the pot with indication of the relative control: yes
pan detection: Yes, minimum 9 cm
Automatic shutdown in case of overheating: yes
Automatic shutdown in case of overflow: yes
Residual heat indicator: yes
Protection against accidental starting: yes
PERFORMANCE / ENERGY LABEL
2nd zone energy consumption: 195 Wh / Kg
Energy consumption zone 3: 195 Wh / Kg
Energy consumption zone 4: 198 Wh / Kg
Energy consumption zone 5: 195 Wh / Kg
Energy consumption zone 6: 191 Wh / Kg
ELECTRICAL CONNECTION
Electrical connection power (W): 11100 W
Voltage (V): 220-240V
Voltage 2 (V): 380-415V
Frequency (Hz): 50 / 60Hz
Type of electric cable: Three-phase and Single / Two-phase
Power cable length: 120 cm
LOGISTIC INFORMATION
Product dimensions (mm): 53x900x510
Depth: 510 mm
Width: 900 mm
Product height: 53 mm
Hob Universale SIM3864D
Product Family
Hob
Aesthetics
Universale
Type
Induction
Dimensions
80 cm
Colour
Black
Built-in type
Ultra-low profile or Fully Flushed
AUTOVENT 2.0
Thanks to the AutoVent 2.0 system, it is possible to connect the hood to the hob so that the correct extraction is activated automatically based on the power of the hob or manually, directly from the hob. (* Compatable Smeg hood only)
MULTIZONE
The MultiZone function makes the cooking surface flexible and a gesture will be enough to connect two zones into a single larger one to use even the largest pots.
AUTO POT DETECTION
The Auto-pot detection function is designed to automatically recognize the position of pots with a minimum diameter of 9 cm, saving the user from having to activate the correct area.
Product family: hob
Dimensions: 80 cm
Type: Induction
Integrated type: Ultra low profile or completely flush
Power supply: Electric
AESTHETICS
Black colour
Finish: Glass
Aesthetics: Universal
Material: Glass
Type of glass: Ceramic eclipse
Control Setting Type: EVO Slider
Control knob position: Front
Slider: yes
Glass edge: Straight edge
Screen printing color: Gray
PROGRAM / FUNCTIONS
Total n. of cooking zones: 6
No. of induction cooking zones: 6
Time Setting Options: Auto Power Off
No. of cooking zones with booster: 6
No. of flexible zones: 3
Main on / off switch: yes
Power Levels: 9
Automatic vent 2.0: yes
OPTIONS
Worktop cutout: 490x860 mm
Multizone option: yes
Flexible zone type: Multizone
End of cooking timer: 6
Pause option: yes
Timer: 1
End of cooking alarm: yes
Remaining time indicator: yes
Limited power consumption mode: Yes Advance
Limited power consumption mode in W: 2400 to 11100 - 100 W step
Showroom Demo Option: Yes
Grill function: yes
Key Lock / Child Lock: Yes
Automatic keep warm function: yes
Bridge option: yes
Quick start: yes
Quick level selection: yes
COOKING AREAS
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front-center
4th zone position: Rear-center
5th zone position: Front right
6th zone position: Rear right
1st type of zone: Induction - Multizone
2nd type of zone: Induction - Multizone
3rd type of zone: Induction - Multizone
4th zone type: Induction - Multizone
5th type of zone: Induction - Multizone
6th type of zone: Induction - Multizone
Dimensions of the first zone: 24,0x18,0 cm
2nd zone dimensions: 24,0x18,0 cm
3rd zone dimensions: 24,0x18,0 cm
4th zone dimensions: 24,0x18,0 cm
Dimensions of the fifth zone: 24.0x18.0 cm
Dimensions of the sixth zone: 24.0x18.0 cm
Left multizone size: 38.5x23.0 cm
Multi-zone central size: 38.5x23.0 cm
Right Multizone Size: 38.5x23.0 cm
1st zone power: 2.10 kW
2nd zone power: 2.10 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
5th zone power: 2.10 kW
5th zone power: 2.10 kW
1st zone double booster power: 3.00 kW
2nd zone double booster power: 3.00 kW
3rd zone double booster power: 3.00 kW
1st zone booster power: 2.50 kW
4th zone double booster power: 3.00 kW
5th zone double booster power: 3.00 kW
6th zone double booster power: 3.00 kW
2nd zone booster power: 2.50 kW
3rd zone booster power: 2.50 kW
4th zone booster power: 2.50 kW
5th zone booster power: 2.50 kW
6th zone booster power: 2.50 kW
Left Multizone booster power: 3.70 kW
Multizone Booster Control Unit: 3.70 kW
Right Multizone booster: 3.70 kW
TECHNICAL FEATURES
Automatic setting based on plate size: yes
Permanent automatic detection of the pot with indication of the relative control: yes
pan detection: Yes, minimum 9 cm
Automatic shutdown in case of overheating: yes
Automatic shutdown in case of overflow: yes
Residual heat indicator: yes
Protection against accidental starting: yes
PERFORMANCE / ENERGY LABEL
2nd zone energy consumption: 195 Wh / Kg
Energy consumption zone 3: 195 Wh / Kg
Energy consumption zone 4: 198 Wh / Kg
Energy consumption zone 5: 195 Wh / Kg
Energy consumption zone 6: 191 Wh / Kg
ELECTRICAL CONNECTION
Electrical connection power (W): 11100 W
Voltage (V): 220-240V
Voltage 2 (V): 380-415V
Frequency (Hz): 50 / 60Hz
Type of electric cable: Three-phase and Single / Two-phase
Power cable length: 120 cm
LOGISTIC INFORMATION
Product dimensions (mm): 53x900x510
Depth: 510 mm
Width: 900 mm
Product height: 53 mm
| Product Name : | Smeg SIM3864D Hob |
|---|---|
| Colour : | Black |
| Electrical Connection : | Must be Hard wired |
| Residual heat indicator : | Residual heat indicators remain alight whilst hob is still hot |
| Controls : | Touch control |
| Manufacturer : | Smeg |
| Size : | Lrg W Hob 6 Zones-Flexible |
| Warranty : | 2 Yr Warranty |
