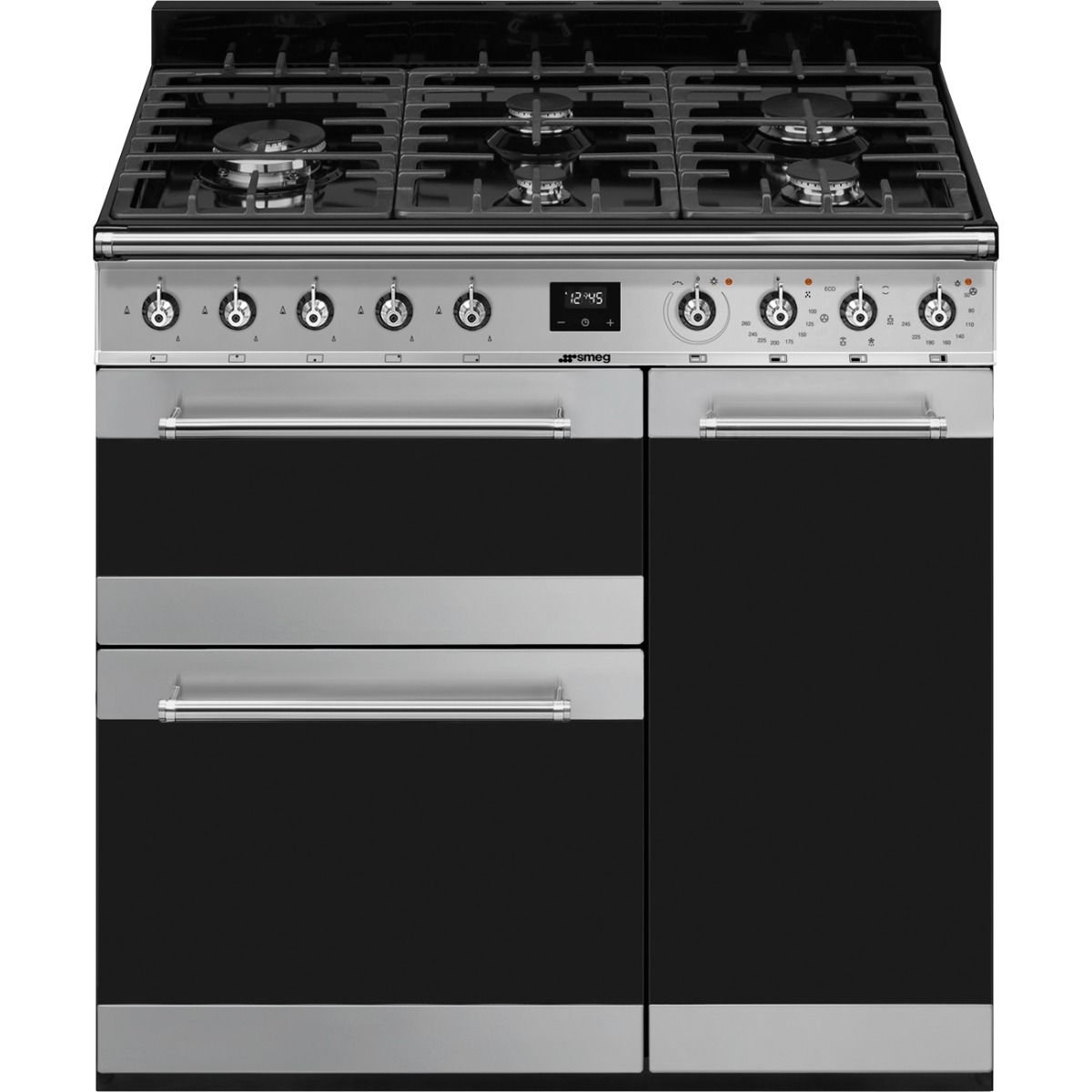

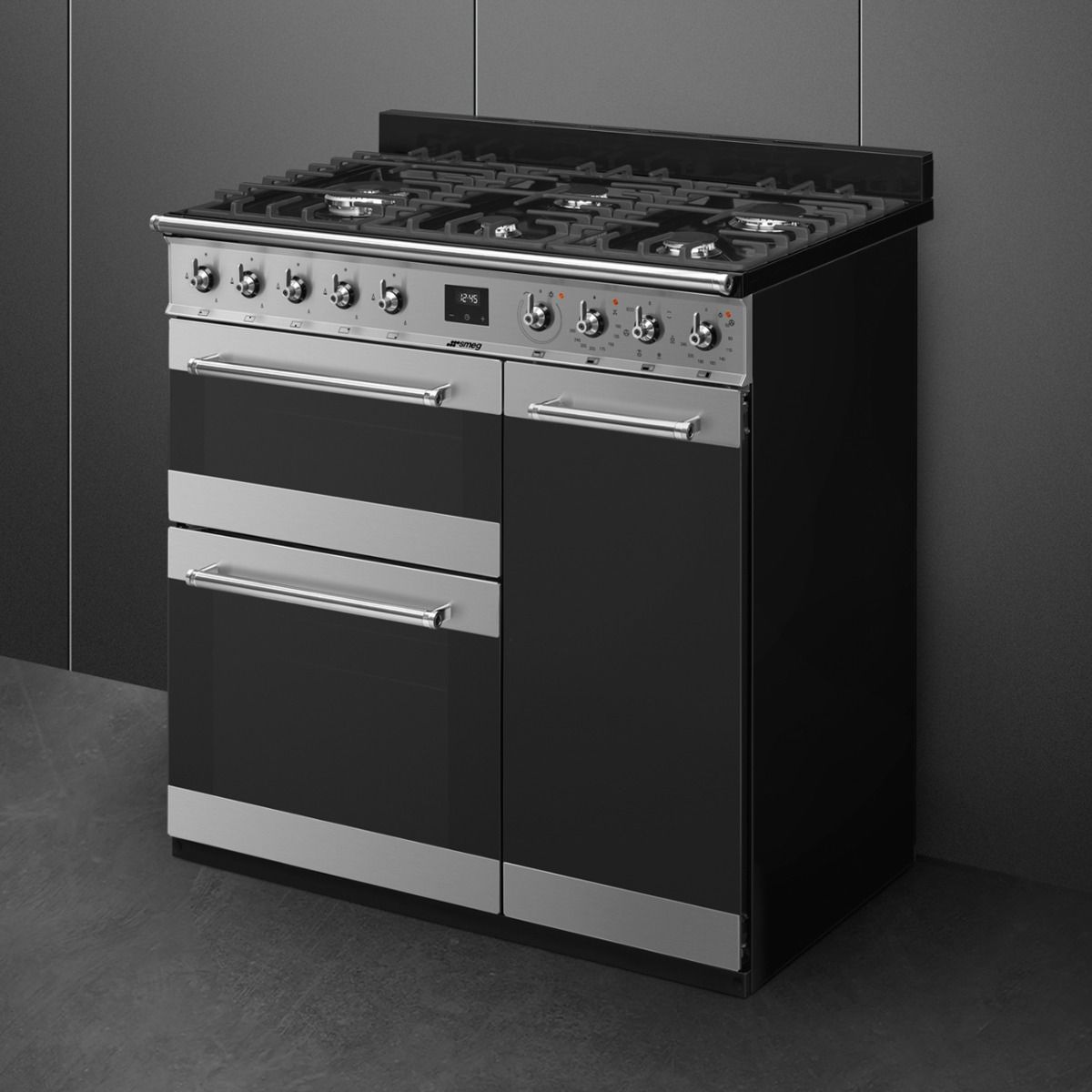

Smeg SY93-1 Range Cooker

Smeg SY93-1 3 Cavity Range Cooker Electric Oven Gas Hob Stainless Steel
AUXILIARY OVEN

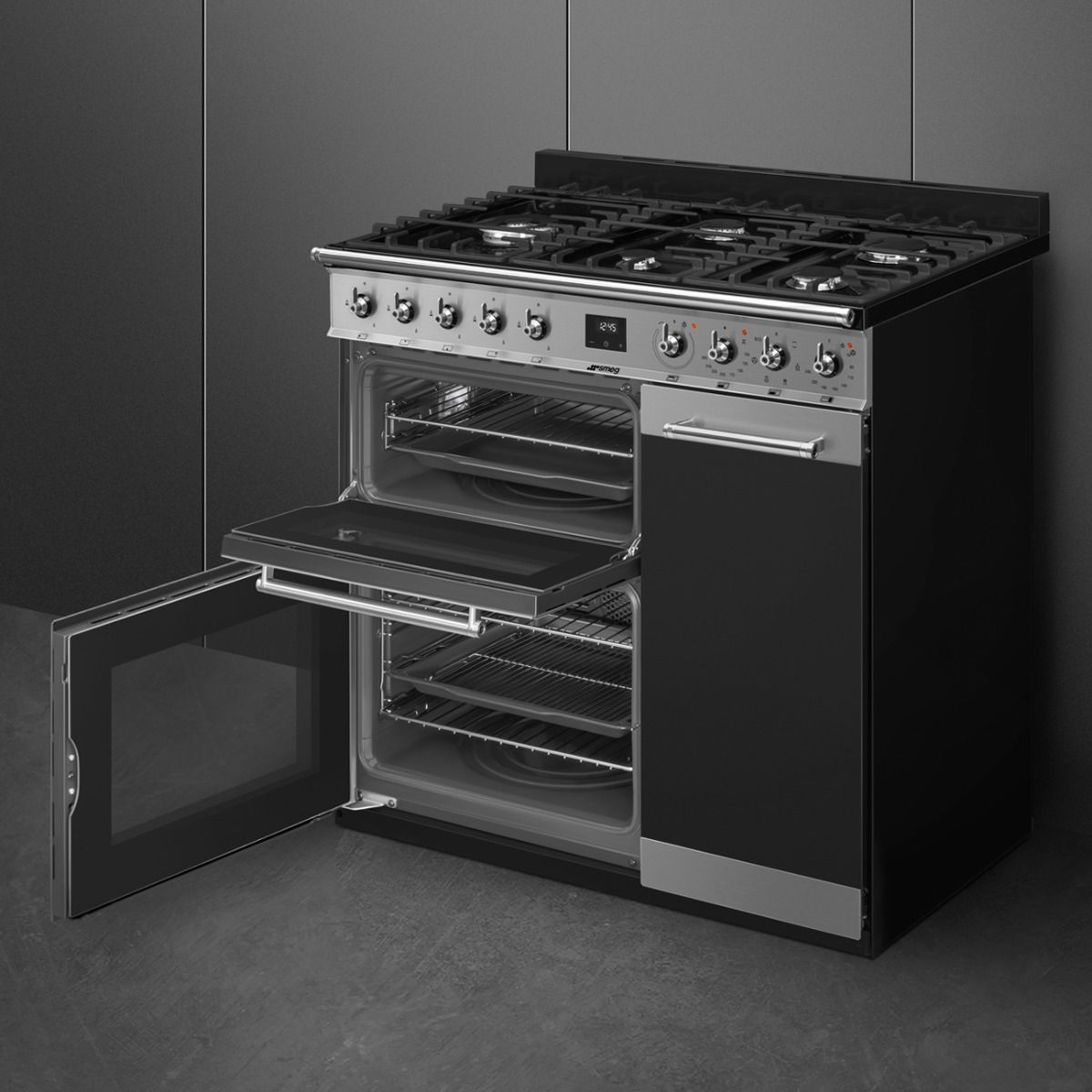

The SY93's AUXILIARY OVEN (positioned on the right hand side) has a full height side opening door which is externally glazed with an enamelled inner door for energy efficiency. With a net capacity of 62 litres this tall oven is equipped a total of 9 cooking levels, making it ideal for small batch baking and plate warming - in fact you can cook a whole roast dinner just in this tall oven.

GRILL OVEN
The GRILL OVEN (positioned top left) boasts a powerful 2.7kW adjustable grill, and has a 36 litre net capacity alongside 2 cooking levels.

TYPE
Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.
Product Family: Cooker
Cooker size: 90x60 cm
Hob energy type: Gas
Hob type: Gas
Main oven type: Thermo-ventilated
Type of second oven: Thermo-ventilated
Cleaning system: Vapor Clean
EAN code: 8017709300500
AESTHETICS

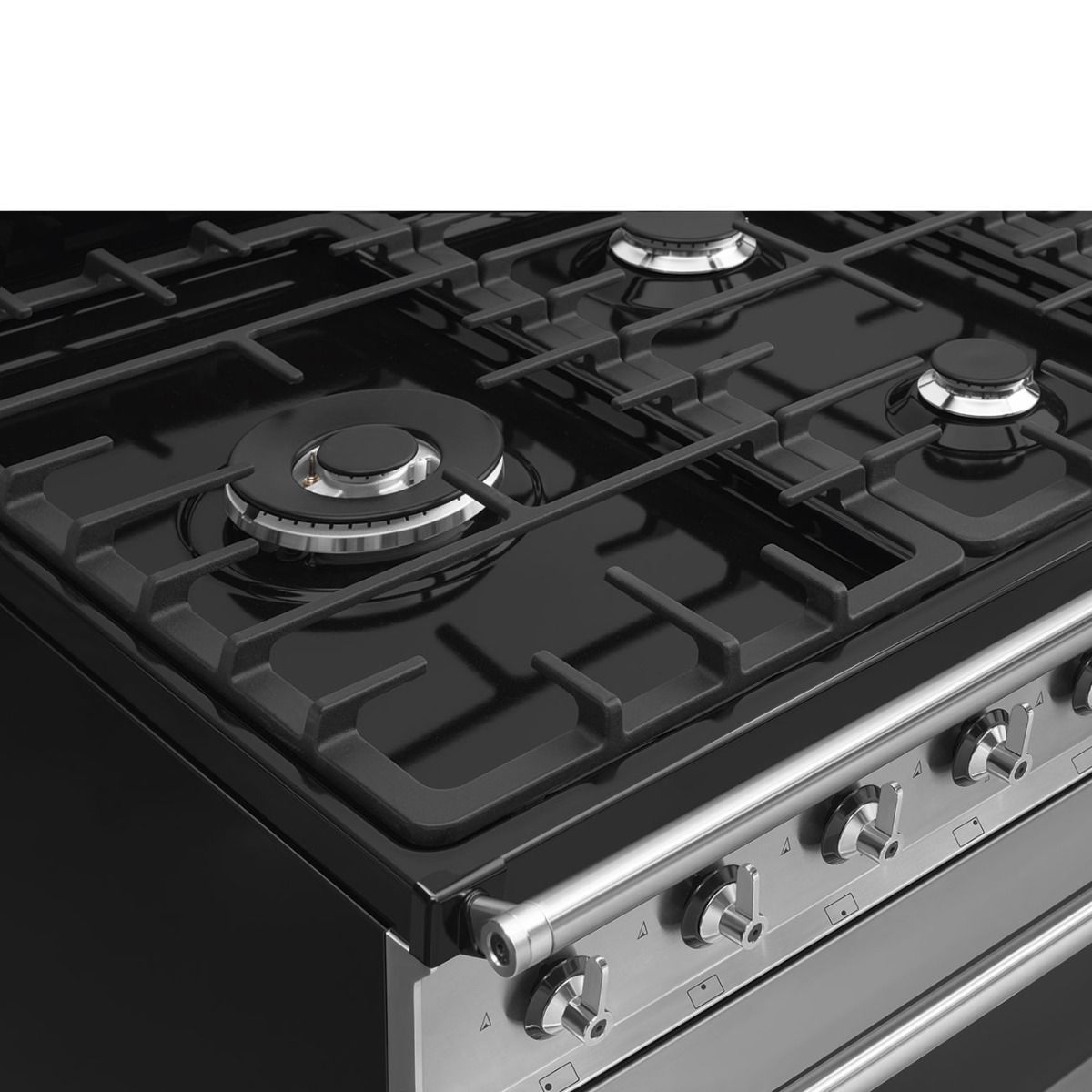

Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Classic
Design: Square design
Series: Symphony
Material: Stainless steel
Door: With 2 horizontal strips
Command panel finish: Stainless steel
Hob colour: Black enamel
Handle: Smeg Classic
Controls colour: Stainless steel
Upstand: Yes
Display: Touch
Type of pan stands: Cast Iron
Handle Colour: Brushed stainless steel
Control knobs: Smeg Classic
Glass type: dark grey
No. of controls: 9
Plinth: Black
PROGRAMS / FUNCTIONS
Traditional cooking functions
Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.Static Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods.Fan assisted Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.Circulaire ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food.ECO Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning.Fan assisted base
Cleaning functions
Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.Vapor Clean
Other functions
Defrost by time: with this function the time of thawing of foods are determined automatically.Defrost by time
PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2: 1
Traditional cooking functions, cavity 2
Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.Circulaire
PROGRAMME / FUNCTIONS THIRD OVEN
No. of functions third oven: 1
OPTIONS MAIN OVEN
Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C
OPTIONS AUXILIARY OVEN
Minimum Temperature: 50 °C
Maximum temperature: 245 °C
OPTIONS THIRD OVEN
Minimum Temperature: 50 °C
Maximum temperature: 260 °C
HOB TECHNICAL FEATURES

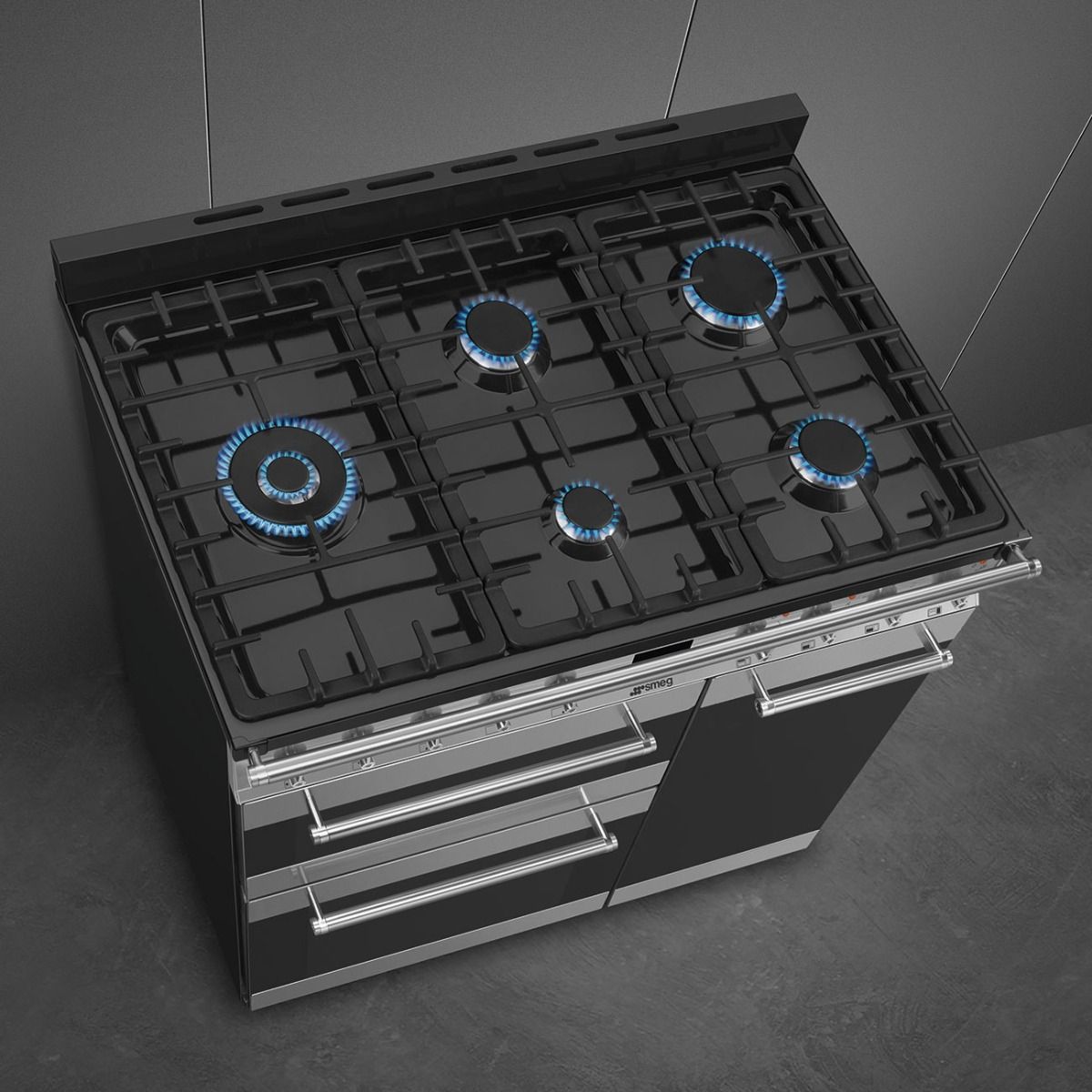

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 5
1st zone position: Left centre
2nd zone position: Rear centre
3rd zone position: Front centre
4th zone position: Rear right
5th zone position: Front right
1st zone type: Gas - 2UR (dual)
2nd zone type: Gas - Semi Rapid
3rd zone type: Gas - AUX
4th zone type: Gas - Rapid
5th zone type: Gas - Semi Rapid
1st zone power: 4.20 kW
2nd zone power: 1.80 kW
3rd zone power: 1.00 kW
4th zone power: 2.90 kW
5th zone power: 1.80 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes
MAIN OVEN TECHNICAL FEATURES
Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 4 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 61 litres
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical
SECOND OVEN TECHNICAL FEATURES
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 9 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Double glazed doors: Number of glazed doors. Side lights: Two opposing side lights increase visibility inside the oven. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity: 62 litres
Cavity material: Easy clean enamel
Shelf positions: 9
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Door opening: Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 2
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Temperature control: Electro-mechanical
THIRD OVEN TECHNICAL FEATURES
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. The oven cavity has 2 different cooking levels. Side lights: Two opposing side lights increase visibility inside the oven. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The capacity indicates the amount of usable space in the oven cavity in litres. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors.
Net volume, 3rd cavity: 36 l
Gross volume, 3rd cavity: 41 l
Cavity material: Easy clean enamel
Shelf positions: 2
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Large grill - Power: 2700 W
Temperature control: Electro-mechanical
PERFORMANCE / ENERGY LABEL
???Energy_Label_A-Right-Yellow_72dpi???
Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.77 MJ
Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
GAS - Energy consumption conventional mode, first cavity: 3.06 MJ
Energy consumption conventional first cavity (kWh): 0.85 KWh
PERFORMANCE /ENERGY LABEL - SECOND CAVITY
???Energy_Label_B-Right-LightOrange_72dpi???
Energy efficiency class, second cavity: B
GAS - Energy consumption in forced air convection, second cavity: 3.49 MJ
GAS - Energy consumption in forced air convection, second cavity: 0.97 KWh
ELECTRICAL CONNECTION
Nominal power: 7600 W
Voltage: 220-240 V
Frequency: 50/60 Hz
GAS CONNECTION
Gas connection rating (W): 11600 W
Gas Type: G20 Natural gas
LOGISTIC INFORMATION
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Net weight (kg): 95.500 kg
