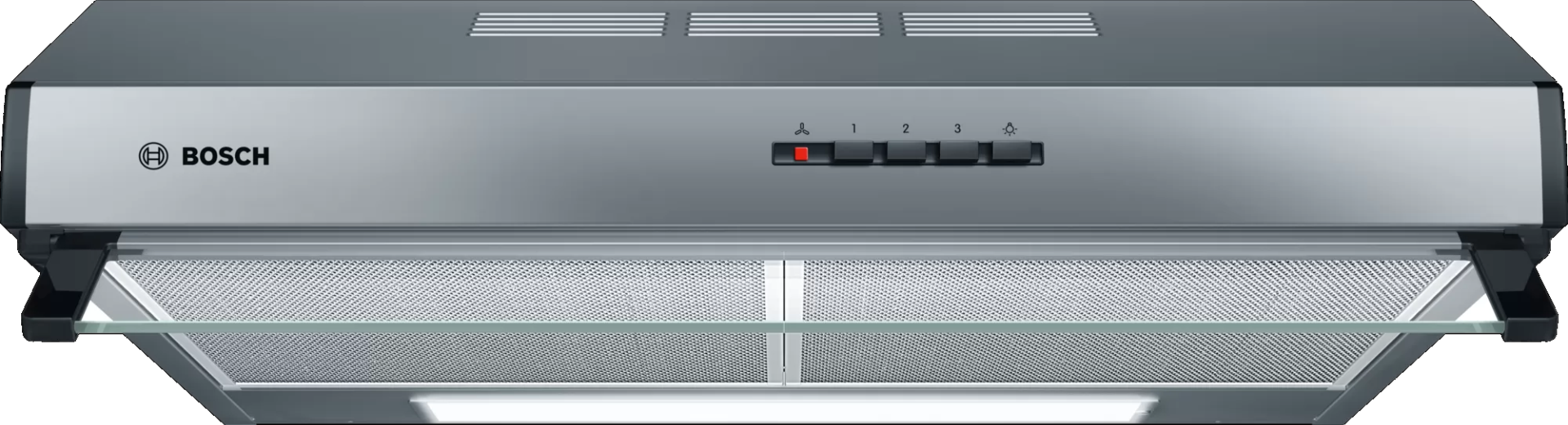

Bosch DUL63CC50B Hood

Bosch DUL63CC50B 60Cm Built Under Conventional Cooker Hood - Brushed Steel
LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time.
3-speed power Level options to suit your cooking style and recipes.
Dishwasher safe aluminum mesh filters
Ducted or Non-ducted Options

Technical data
Product group Hood
Product name / Commercial code DUL63CC50B
Nominal power of the lighting system W_L (2009/125/EC) 8.0 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 204 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 90 lux
Internal article number DUL63CC50B
EAN code 4.242E+12
Basic color of product N/A
Color body Stainless steel
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 141.0 W
Material chimney
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 216.0 m³/h
Material body Stainless steel
Time increase factor f (2009/125/EC) 1.7
Typology Built-in/Built-under
Type of control mechanical
Installation type Built-in
Front panel options N/A
Motor location Integrated motor in hood body
Air circulation Convertible
Fuse protection A
Voltage 220-240 V
Frequency 50 Hz
Length of electrical supply cord 145.0 cm
Plug type GB plug
Height of the appliance mm
Height of the packed product 280 mm
Width of the packed product 750 mm
Depth of the packed product 660 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation mm
Maximum width for installation mm
Depth for installation mm
Gross weight 10.1 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 150 mm
Minimum chimney height in mm (exhaust.) 150 mm
Maximum chimney height in mm (recirc.) 150 mm
Minimum chimney height in mm (recirc.) 150 mm
Total annual energy consumption 93.3 kWh/annum
Energy efficiency index (2010/30/EC) 95.90%
Fluid Dynamic Efficiency (2010/30/EC) 8.7
Fluid Dynamic Efficiency class (2010/30/EC) E
Lighting efficiency (2010/30/EC) 11.0 lux/Watt
Lighting efficiency class (2010/30/EC) E
Grease filtering efficiency (2010/30/EC) 75.10%
Grease filtering efficiency class (2010/30/EC) C
Maximum Air flow 350 m³/h
Minimum air flow 175 m³/h
Maximum Air flow 350 m³/h
Air flow boost (2010/30/EC) m³/h
Sound power at max. speed (2010/30/EC) 72 dB
Sound power at min. speed (2010/30/EC) 56 dB
Power consumption in standby mode (2010/30/EC) W
Power consumption in off-mode - NEW (2010/30/EC) 0.00 W
Noise level 72 dB(A) re 1 pW
Noise level with boost position dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No
Type of manual control devices Push buttons
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 138 W
Maximum output air extraction 350 m³/h
Boost position air extraction m³/h
Maximum output recirculating air 110 m³/h
Boost position output recirculating m³/h
Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps 8 W
Total luminance 45 lux
Grease filter material Washable aluminium
Diameter of air outlet 120 / 100 mm
Grease filter type Kassette
No-return airflow flap Yes
Odour filter No
Number of speed settings 3
Type of lamps used
Included user manuals
Included accessories
Optional accessories DHZ2701
Product image MCSA00778437_424736_DHU675U_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Sound power boost (2010/30/EC) dB
Design Built-under hoods
Delay Shut off modes min
