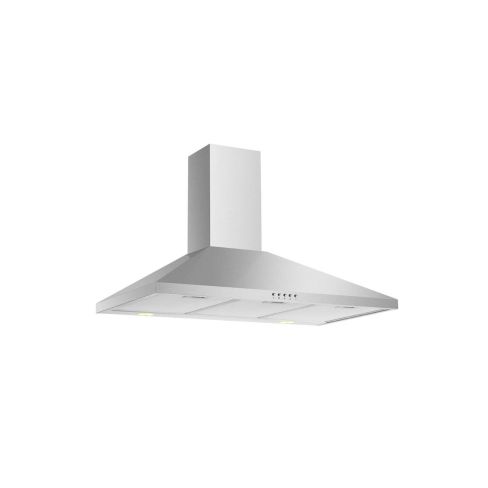

CDA ECH103SS Chimney Hood
Model No:
ECH103SS
Dimensions:
644-1024
mm (h) x
1000
mm (w) x
500
mm (d)
Availability:
In stock (1)*
*Stock quantity shown may include display models which sometimes
cannot be sold due to their installation in our showrooms. Before
ordering, please call 01273 628618 (opt.1) to check availability.
cannot be sold due to their installation in our showrooms. Before
ordering, please call 01273 628618 (opt.1) to check availability.
£209.99
- Colour: Stainless steel
- 64db max noise level
- Push button control
- Three power levels
- LED Lighting
- 60cm Wide
- Energy Rating
- 5 years parts and 2 years labour
CDA ECH103SS Chimney extractor, ducted/recirc, 3 speeds, 498m3/h, 64 dBA, LED lighting, SS
Ducted/re-circulating installation
Push button
3 speeds
Type of grease filter: Aluminium grease filters
Stainless steel
Technical Specification
Outlet diameter: 150 mm
Mains lead length: 1.2 m
Required height over electric hobs: 650 mm (min)
Required height over gas hobs: 700 mm (min)
Motor Input: 150.0000 W
Extraction Rates And Noise
Noise level at third speed: 64 dBA
Extraction rate at third speed: 498 m³/hr
Noise level at first speed: 53 dBA
Extraction rate at second speed: 369 m³/hr
Noise level at second speed: 62 dBA
Extraction rate at first speed: 291 m³/hr
Dimensions
Width: 1000
Depth: 500
Height: 644-1024
Filters
Aluminium grease filter: 1
Number of charcoal filters (optional): 2
Lighting
Lighting: 2 X LED
Wattage of light: 1.5 W
Energy
Energy rating: C
Annual energy consumption: 61.0000 kWh
Optional Accessories
Ducting kit: 1
Misc Information
WEEE Category: 1
Ducted/re-circulating installation
Push button
3 speeds
Type of grease filter: Aluminium grease filters
Stainless steel
Technical Specification
Outlet diameter: 150 mm
Mains lead length: 1.2 m
Required height over electric hobs: 650 mm (min)
Required height over gas hobs: 700 mm (min)
Motor Input: 150.0000 W
Extraction Rates And Noise
Noise level at third speed: 64 dBA
Extraction rate at third speed: 498 m³/hr
Noise level at first speed: 53 dBA
Extraction rate at second speed: 369 m³/hr
Noise level at second speed: 62 dBA
Extraction rate at first speed: 291 m³/hr
Dimensions
Width: 1000
Depth: 500
Height: 644-1024
Filters
Aluminium grease filter: 1
Number of charcoal filters (optional): 2
Lighting
Lighting: 2 X LED
Wattage of light: 1.5 W
Energy
Energy rating: C
Annual energy consumption: 61.0000 kWh
Optional Accessories
Ducting kit: 1
Misc Information
WEEE Category: 1
| Product Name : | CDA ECH103SS Chimney Hood |
|---|---|
| Colour : | Stainless steel |
| Noise Level : | 64db max noise level |
| Control Type : | Push button control |
| Power Levels : | Three power levels |
| Lighting : | LED Lighting |
| Manufacturer : | CDA |
| Size : | 60cm Wide |
| Energy Rating : | [[C]] Energy Rating |
| Warranty : | 5 years parts and 2 years labour |
