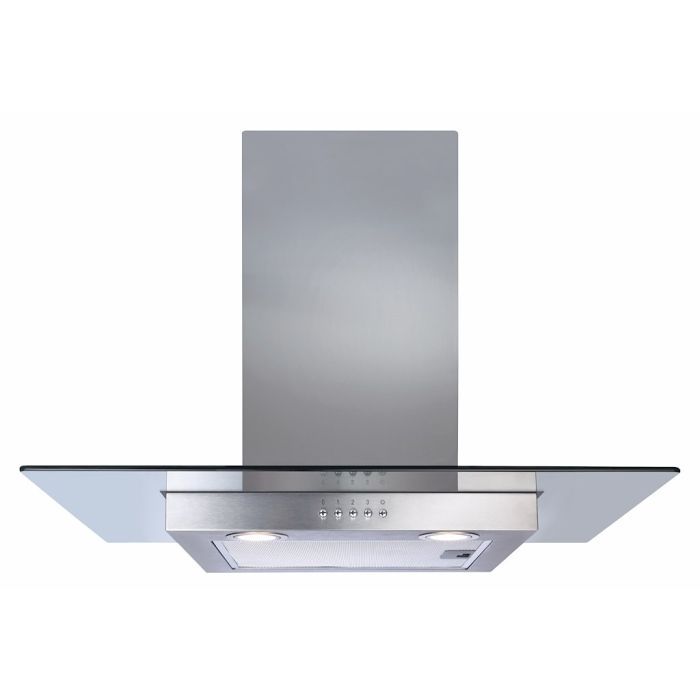

CDA ECN72SS Chimney Hood Flat glass extractor, D Rated

Upgrade your kitchen with the sleek and stylish CDA ECN72SS 70cm Unbranded Chimney in Stainless Steel. This chimney features a modern design that will complement any kitchen decor. With powerful extraction capabilities, it effectively removes cooking odors and smoke, keeping your kitchen fresh and clean. Say goodbye to unwanted kitchen smells and hello to a more enjoyable cooking experience with the CDA ECN72SS Chimney.
Features
Ducted/re-circulating installation
3 speeds
Type of grease filter: Aluminium grease filter
Available in
Stainless steel

Optional Accessories
Charcoal filters for re-circulation: CHA12 (pack of 1)
Ducting kit code: 120mm, AED 51/53/54
Technical Specification
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
Noise level: 60 dBA
Extraction rate: 391 m3/hr
Extraction rate at first speed: 218 m³/hr
Extraction rate at second speed: 302 m³/hr
Extraction rate at third speed: 391 m³/hr
Noise level at first speed: 50 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA
Filters
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
WEEE Category: 01
