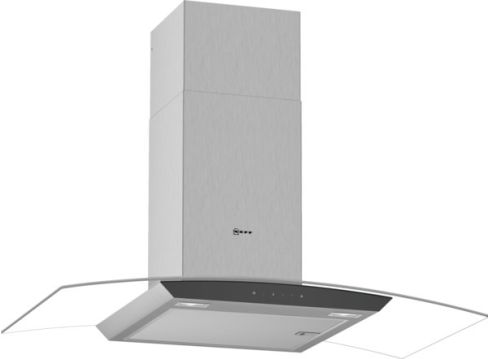

Neff D94AFM1N0B Hood

N 50 Glass Chimney Hoods D94AFM1N0B 90cm
curved design
3 speed + intensive
electronic
Touch Control
LED lights. Optional Recirculating Kit: Z51DXU0X0 Stainless steel + glass A

Key performance features:

·        Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
·        Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 360 m³/h
Intensive 580 m³/h
·        Noise max. Normal Level: 61 dB*

Features

·        Touch control
·        LED display
·        3 speeds plus intensive
·        2 x 1.5w LED Light
·        Colour Temperature: 3500 K
·        Automatic intensive revert (6mins)
·        1 metal grease filter cassette
·        For wall mounted installation

Design

·        Stainless steel
·        Glass design
·        Chimney hood
·        Touch control
·        Electronic controls

Performance/technical information

·        Suitable for ducted extraction and recirculation
·        For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
·        Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 360 m³/h
Intensive 580 m³/h
·        Max. extraction rate: 580 m3/h
·        Extraction rate in recirculation mode:
Max. normal use: 280 m³/h
Intensive: 350 m³/h
·        Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
·        Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
Intensive: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
·        Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 61 dB (A) re 1pW
·        Noise max. Normal Level: 61 dB*
·        Noise levels in recirculation mode:
Max. normal use: 72 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
·        Power rating: 220 W
·        Light Intensity: 240 lux
·        Colour Temperature: 3500 K
·        Electrical cable length 1.3 m
·        Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
·        Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
·        Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
·        Dimensions recirculating with CleanAir module (HxWxD):
686 x 900 x 488 mm - mounting with outer chimney
815-1145 x 900 x 488 mm - mounting with telescopic chimney
·        Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
·        Blower Efficiency Class: A*
·        Lighting Efficiency Class: A*
·        Grease Filtering Efficiency Class: B*
·        Average Energy Consumption: 41.4 kWh/year*

Optional accessories

·        Recirculating kit Z5270X0
