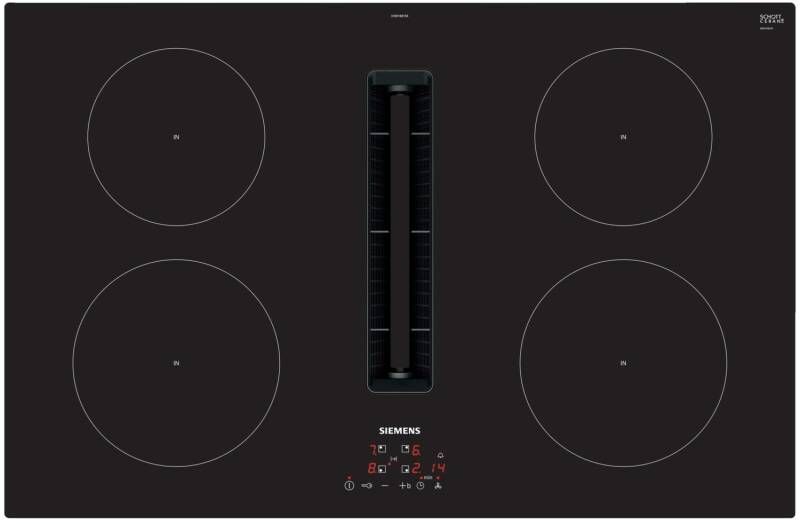

Siemens EH811BE15E Hob

Siemens EH811BE15E iQ300 80cm inductionAir venting hob, touchControl, 4 x individual zones + Ventilation, auto on fan, 7.4kw frameless optional unducted.

Siemens EH 811 BE 15E powerLine powerInduction 80cm TouchControl powerBoost

Design hob with a fully integrated and flush extractor hood.

Shorter boiling times with up to 50% more power - powerBoost function.
Switches the cooking zone off safely - timer with safety switch-off.
Safely prevents unintentional switching on - child lock.
Cooking faster, cleaner and safer - power induction.

• Design:
Frameless
Speed:
powerBoost function possible for all induction cooking zones
Furnishing:
4 induction cooking zones

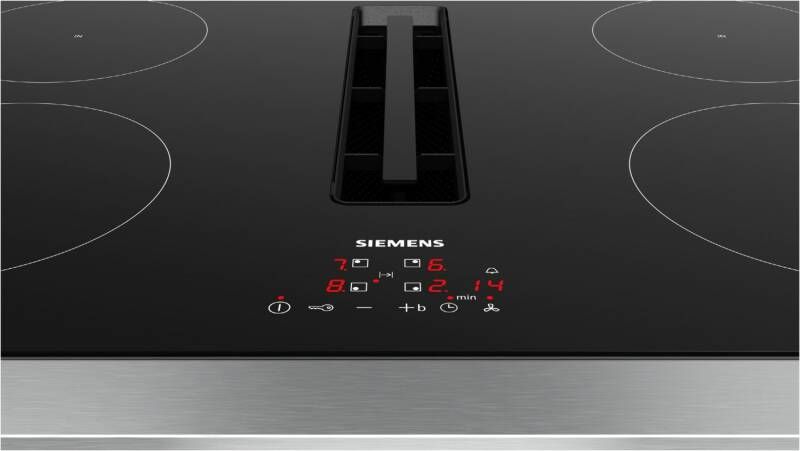

touchControl operation
Digital function display
timer
countDown function
reStart
quickStart
Performance and size:
Cooking zones: 1 x Ø 210 mm, 2.2 kW (max. Power level 3.7 kW) induction; 1 x Ø 180 mm, 1.8 kW (max. Power level 3.1 kW) induction; 1 x Ø 180 mm, 1.8 kW (max. Power level 3.1 kW) induction; 1 x Ø 210 mm, 2.2 kW (max. Power level 3.7 kW) induction 17 power levels
Environment and safety:
2-stage residual heat display for each cooking zone, main switch for pan detection
powerManagement function
Automatic safety shutdown
Parental controls
Wipe protection function
Dimensions:
Device dimensions: (H / W / D) 223 x 802 x 522 mm
Installation dimensions: (H / W / D) 223 mm x 750 mm x 490 mm
Min. Worktop thickness: 16 mm
Length of connection cable: 110 cm
Connected load: 7.4 kW
Connection cable enclosed in packaging
Integrated downdraft ventilation system
Induction hob with fully integrated, powerful downdraft extraction module.
Either exhaust air or recirculation mode, special accessories are required in each case:
HZ9VEDU0 acoustic filter for exhaust air

Automatic activation of the ventilation system when using a cooking zone
Automatic delayed switch-off after cooking in order to eliminate residual odors after cooking (in specific ultra-low-noise fan speed, 12min (exhaust air), 30min (air circulation), can be switched off manually)
Fully manual control possible via touchControl
Blower technology with highly efficient, low-noise, brushless direct current motor (BLDC). Airflow optimized in terms of air flow in the interior
Easy removal and cleaning of the grease filter and overflow protection unit:

Convenient one-hand removal of the unit via a floating glass ceramic handle
Large, 12-layer stainless steel grease filters for high grease filtration efficiency (94%)
All parts are easy to clean, dishwasher-safe and heat-resistant
Condensate and overflow protection container, approx. 200 ml capacity
- Condensate and overflow protection container, approx. 200 ml capacity
Safety overflow tank (dishwasher-safe) with an additional 700ml capacity. Easily accessible and removable from below.
Overall a capacity of 900ml (200ml + 700ml)

Extractor hood performance:

Exhaust air capacity (according to EN 61591): min.normal setting 332 m3 / h, max.normal setting 500 m3 / h, max.boost / intensive setting 575 m3 / h
Circulation capacity (according to EN 61591): min.normal setting 327 m3 / h, max.normal setting 500 m3 / h, max.boost / intensive setting 565 m3 / h
Noise levels in exhaust air mode: min.normal level 60 dB re 1 pW, max.normal level 68 dB re 1 pW, max.boost / intensive level 72 dB re 1 pW
Noise levels in recirculation mode: min.normal setting 58 dB re 1 pW, max.normal setting 68 dB re 1 pW, max.boost / intensive level 70 dB re 1 pW
Grease filter efficiency: 94%.
All performance data are preliminary, based on the latest test results with prototypes and will be updated as soon as final data is available.
Average energy consumption: 61.6kWh / year

Energy efficiency class: B (with a scale of energy efficiency classes from A +++ to D)
Fan efficiency class: B
- Average energy consumption: 55.
Grease filter efficiency class: B
Min./max. Normal level: 60 dB + 68 dB
With recirculation mode 2 x 2 directly integrated, powerful cleanAir recirculation filters
Optimized odor reduction capabilities for cooking applications with complex odor molecule chains (e.g. fish smells)
Large filter surface with high odor reduction rate
Filter service life of 360h with intensive cooking (cannot be regenerated)
Very low noise with optimized psychoacoustics
Easy access and easy removal from above through the air inlet

With recirculation mode 2 x 2 directly integrated, powerful cleanAir recirculation filters
Planning and installation information
Optionally suitable for exhaust air or recirculation mode. Essential installation accessories required:
HZ9VEDU0: acoustic filter (exhaust air)

Planning information:
The planning is possible as wall and island planning
The product meets the requirements of the needle flame test (according to IEC 60695-5-11), the V2 flammability class (according to U
