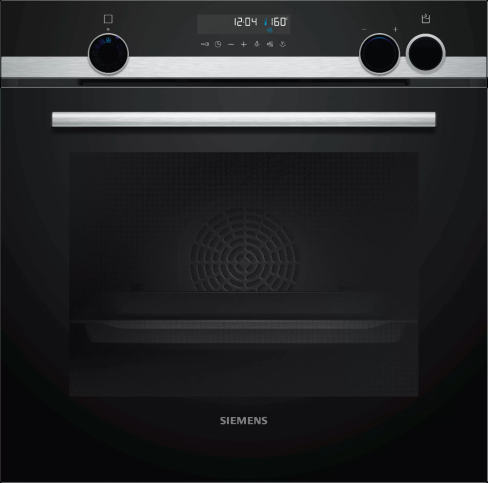

Siemens HR538ABS1 Built In Single Oven

Siemens HR538ABS1 Multifunction, 9 functions, LCD lightControl, Added Steam, coolStart, cookControl3

fastPreheat – Heat the oven quickly. coolStart – Eliminate preheating for frozen foods.
ecoClean: Cut down on oven cleaning
The addedSteam function: for crispy crusts and juicy roasts.
 cookControl30: automatic programs ensure best results.
lightControl: intuitive operation thanks to the illuminated dial.

Additional information
General
Where can the appliance be installed
Base cabinet, high cupboard installation
Are some hobs controls integrated
No
Colour/material
Stainless steel
No. heating modes
9
Heating Types
conventional top & bottom heating, Deep-frozen food special, Full width grill, Hot Air, Hotair gentle, hot air grilling, low temperature cooking, Pizza setting
Range of temperature (°C)
30-275 °C
addedSteam - for baking and roasting
Yes
Integrated Cleaning system
Catalytic partial
Ease of access
Accessory
Door hinge
Bottom
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Energy efficiency rating
A
Safety device
childproof lock, Residual heat indicator, Safety switch-off func oven
Included accessories
1 x combination grid, 1 x universal pan
Size and weight
Dimensions
595 x 594 x 548 mm
Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Weight
34.1 kg
Size and weight

Plug type
Gardy plug w/ earthing
Length of electrical supply cord
120 cm
Nominal power
220-240 V
Connection Rating
3,600 W
Fuse protection
16 A
Connectivity
Home Connect No

Comfort
coolStart
Yes
Less time needed for preheating
Yes
Pizza setting
Yes
Supporting systems
Automatic programmes (30)
Features
Oven with 9 heating methods: 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking, Hotair gentle, reheating with steam
Heating modes in combination with steam function: Hot air, Hot air grilling, Top/bottom heat
Temperature range 30 °C - 275 °C
Cavity volume: 71 litres
Level independent telescopic rails
5 shelf positions in oven
Cavity with shelf support rails
Design
lightControl: intuitive operation thanks to the illuminated dials
Stainless steel control dial, lightControl: intuitive operation thanks to the illuminated dials, round
Cavity inner surface: enamel grey
Cleaning
EcoClean Direct : back panel
Programmes/functions
LCD Display (White)
Electronic oven clock timer
Digital temperature display with proposal
Heating-up indicator cookControl Automatic start
cookControl, 30
Additional functions:
Descaling programme
Bar handle
Automatic programmes
Fast preheat
coolStart
Interior halogen light, Light on/off when door opened/closed
Water tank capacity: with a volume of 220ml
Location of water tank: Outside cavity
Integral cooling fan
Accessories
1 x combination grid, 1 x universal pan
Features
Heat reflective glass
Control panel lock
Automatic safety switch off Residual heat indicator
Technical information
120 cm Cable length
Nominal voltage: 220 - 240 V
Total connected load electric: 3.6 KW
Energy efficiency rating (acc. EU Nr. 65/2014): A
Energy consumption per cycle in conventional mode:0.97 kWh
Energy consumption per cycle in fan-forced convection mode:0.81 kWh
Number of cavities: Main cavity Heat source: electrical Cavity volume:71 litres
Performance/technical information

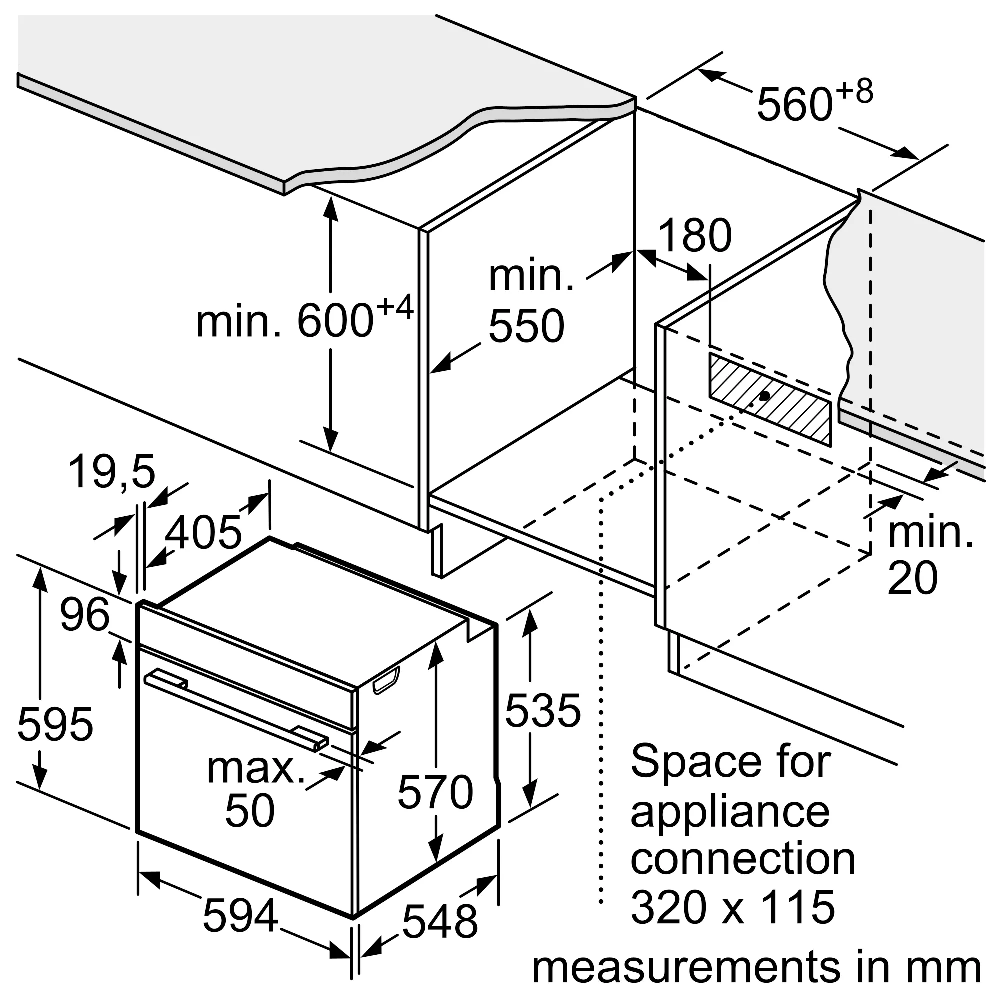

Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
Please refer to the dimensions provided in the installation manual
We recommend you to choose complementary products within IQ500, in order to assure an optimal design combination of your Built-In appliances.
