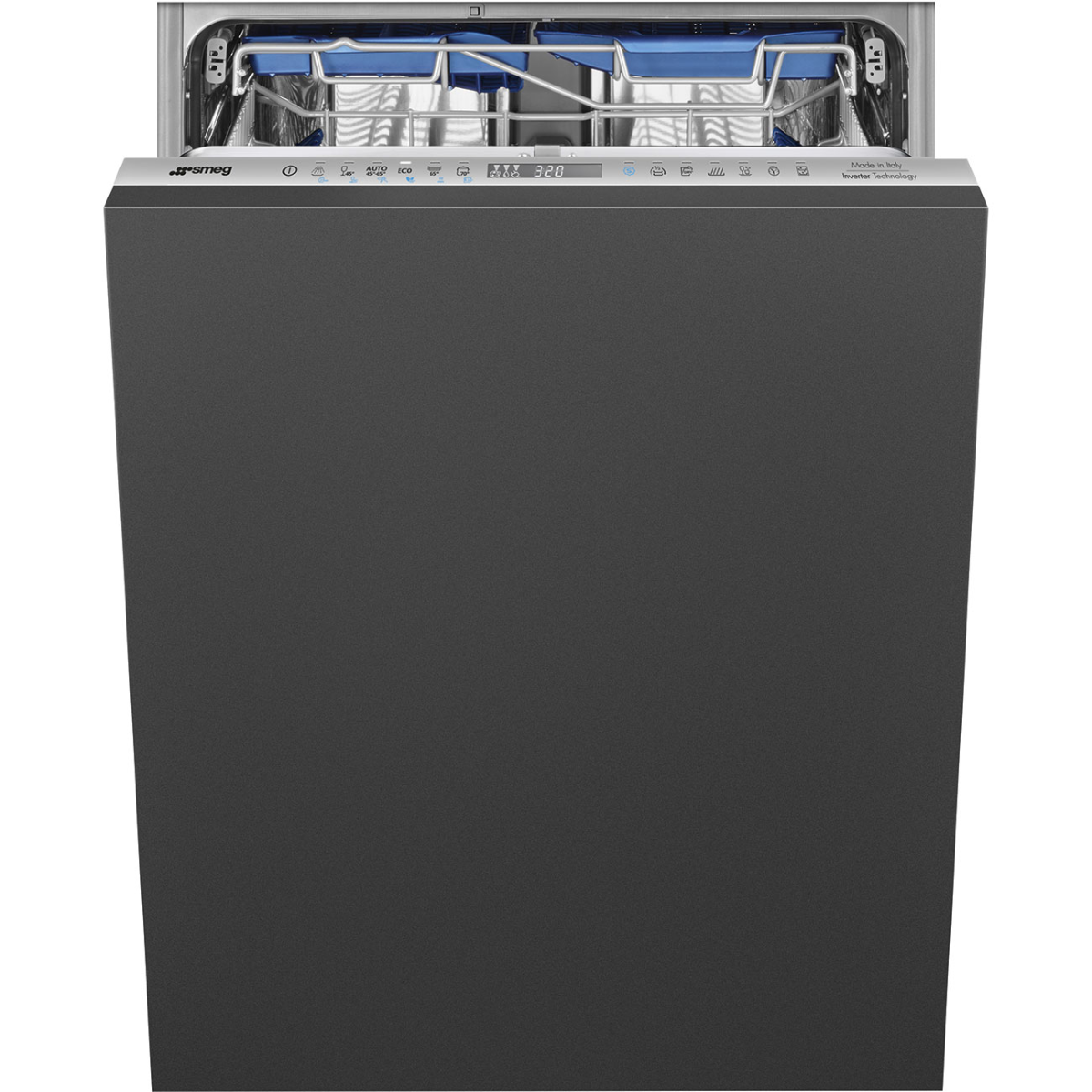

Smeg DI324AQ Dishwasher

Smeg DI324AQ 60Cm Fully Integrated Dishwasher A Rated 14 Place Settings
Active Light
Selected Smeg dishwashers fitted with ActiveLight project a red light onto the floor when the appliance is in operation. At the end of cycle, the light automatically turns off alerting you to open the door.

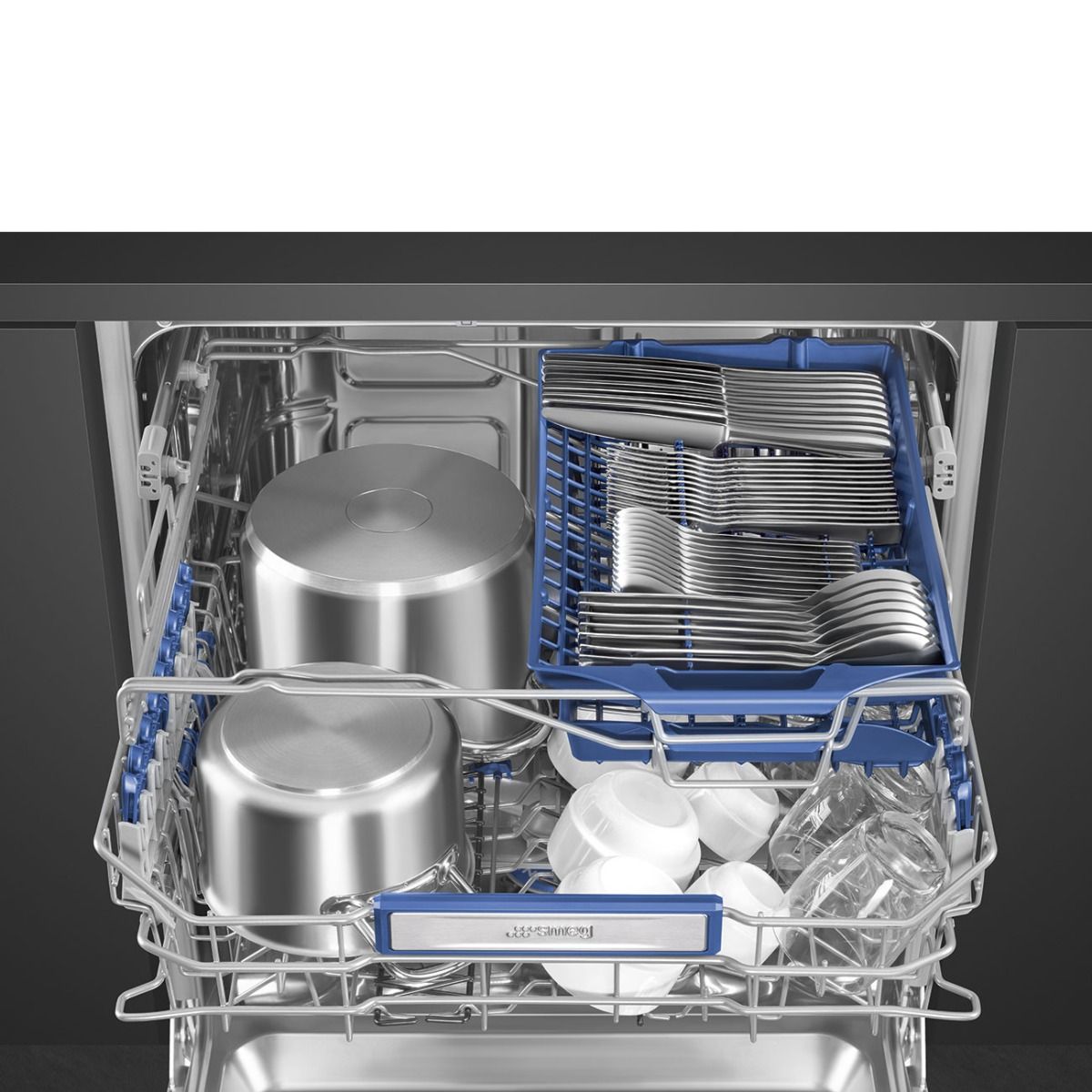

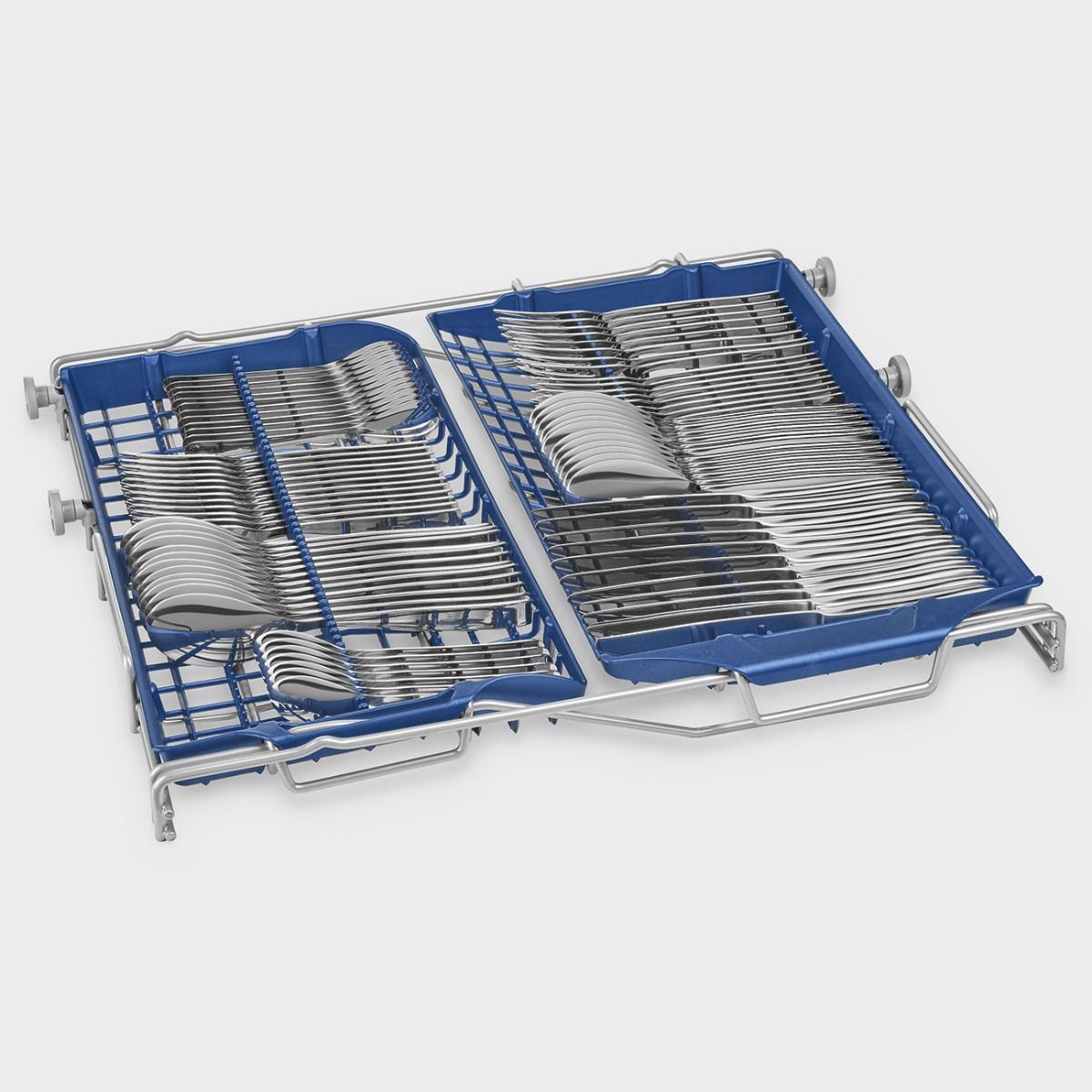

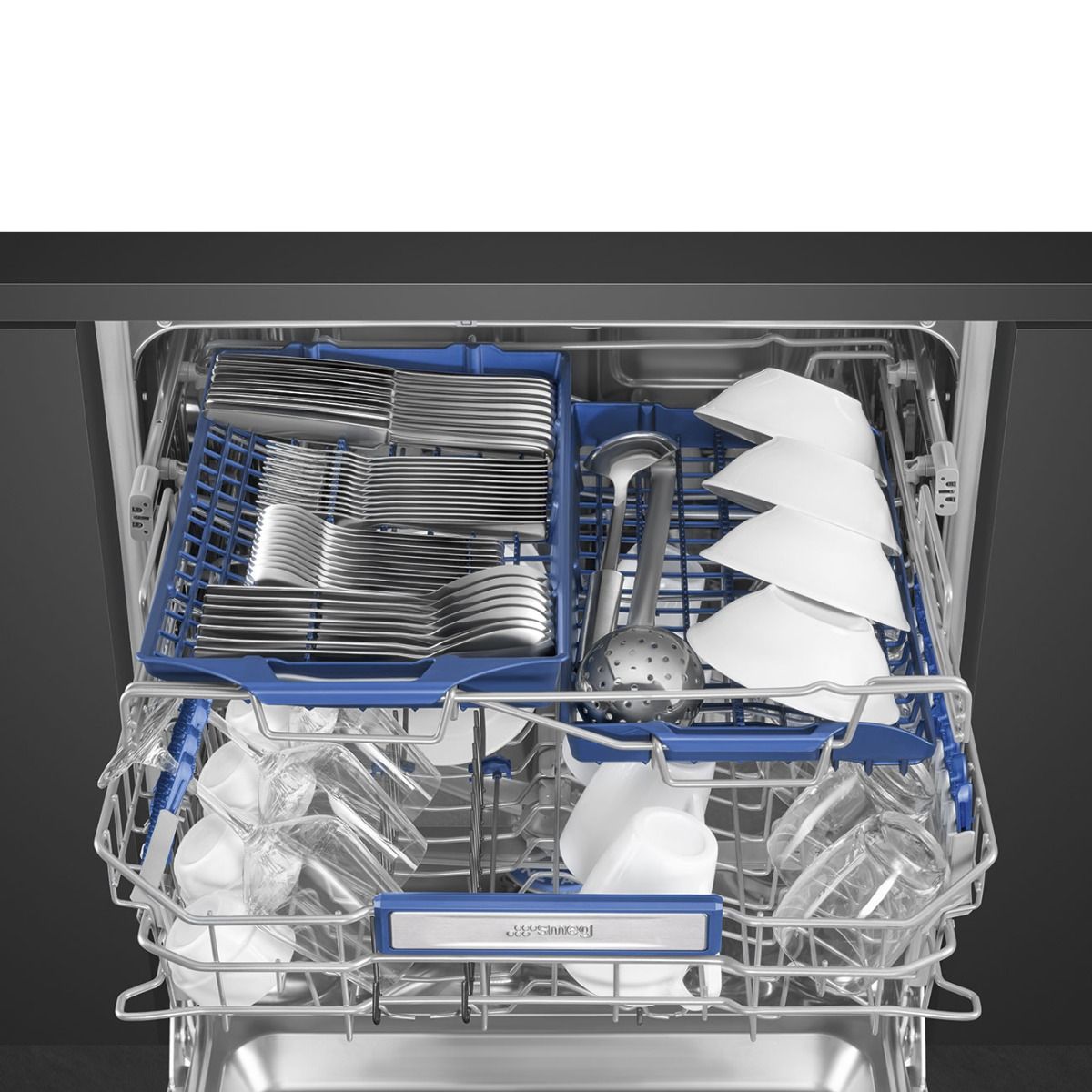

FLEXIDUO cutlery basket
The third cutlery basket; the Smeg Flexi Duo, consists of 2 separate and movable sections which can be adjusted individually or even removed entirely depending on your loading needs. An intelligent solution that makes room for tall glasses below or deep utensils above.
Depending on the model, these can be blue or grey in colour.

Planetarium wash system
The unique, patented planetarium wash system from Smeg provides complete coverage of the dishwasher, thanks to the eccentric rotation of the spray arm on its base.
Anti Drip System
Anti-drip inserts are installed in the lower basket of Smeg's new generation dishwashers. This addition improves drying results and cuts down drips between dish and basket.
INVERTER MOTOR
Some dishwasher models are fitted with a latest generation Inverter motor which guarantees a longer service life, efficiency, reduced energy consumption and noise level.

Dishwashers fitted with the Inverter Motor have a Silence program which reduces the initial noise level of the dishwasher by 2 dB (A).
This is ideal for open plan kitchens and night use, especially during off-peak hours for total discretion.
SLIDING DOOR SYSTEM
The Flexifit hinge system allows smooth sliding of the dishwasher door, in order to offer freedom in the choice of the dimensions of the panel and the plinth, the height of which can vary from 5 to 21.5 cm. The dishwasher harmonises with the cabinet in which it is inserted, allowing the door and the plinth to appear almost flush, with a minimum distance between the two of only 3 mm.

TYPE
COMM_HEIGHT_82_72dpi The symbols show the number of plate settings of the dishwasher.
Product Family:
Dishwashers
Commercial height:
82 cm
Number of place settings:
14
Installation:
Fully-integrated built-in
Width:
60 cm
Kitchen panel:
Not supplied
EAN code:
8017709334444
AESTHETICS
Colour:
Silver
Finishing:
Silver
Aesthetics:
Universal
Front panel colour:
Silver (oropal grey)
Door type:
Silver (oropal)
LED/display colour:
White and blue
Button colour:
Silver (oropal grey)
PROGRAMS / FUNCTIONS
... Eco: Eco, this economic wash programme uses a low amount of water and energy in order to provide the most environmentally friendly cleaning option. ... ... Soak programme: The soak programme provides a rinse to prevent dirt from drying. ... Baking tray programme: for intensive cleaning of the oven trays.
Place the trays in the lower basket of the dishwasher. Auto 45°- 65°: The auto programme regulates the length of a cycle depending on the need for a pre-wash and the number of rinses required. Crystals: The Crystals programme is dedicated to delicate dishes such as glasses and china. Normal programme: The normal programme is suitable for normal degrees of dirt for everyday use. Ultraclean: The Ultraclean option performs a final rinse at a high temperature of 70°c eliminating virtually all bacteria. HYGIENE 99.9% High-temperature washing programme. The 75° rinse guarantees the removal of 99.9% of germs and bacteria,
making it ideal for sanitising Delicate: Delicate washing program is designed for delicate dishes which are not heavily soiled. Rapid 27 Mins: The rapid 27 mins quick program takes just 27 minutes to wash a load.
No. of programmes:
12+2
Soak:
Yes
Express 27':
Yes
Full express - 60 minutes:
Yes
ECO:
Yes
Green express:
Yes
Quiet (-2 dB):
Yes
Auto sensor 45-65:
Yes
Mix:
Yes
Intense:
Yes
Hygiene 99,9%:
Yes
Self clean:
Yes
Delicate:
Yes
Crystal:
Yes
Washing temperatures:
38, 45, 50, 55, 65, 70, 75 °C
Trays:
Yes
OPTIONS
Delay Timer: The delay timer can postpone the start of the program by up to 24 hours. ... FlexiZone: The ½ load flexizone allows you to wash a reduced load saving energy, water and time and there are no restrictions on where the items are placed. Clean&Shine option: For perfect cleaning results, this option adds an extra rinse to the wash cycle, which also gives the dishes a higher gloss. The Dry Assist + option, in addition to saving energy, ensures perfect drying of the dishes by opening the door automatically at the end of the wash c
Dry Assist+ option:
Yes
Delay timer option:
Up to 24 hours, with automatic soak
1/2 load FlexiZone option (varied distribution):
Yes
Special programs option:
Yes
Clean&Shine option:
Yes
BASKETS
FlexiDuo: The FlexiDuo 3rd cutlery basket allows you to arrange cutlery or small cups, ladles, or bulky utensils however you like: it consists of two separate and moveable modules. The new ExtraGlide guide system, available on top of the range models, makes the second basket even smoother and softer. In fact, it facilitates the extraction of the introduction, even at full load and, for the greater excursion, the insertion of crockery is also facilitated in the rear part. Anti-drip: Some models of dishwashers are equipped with special polymer nozzles anti-drip, that improve the process of drying.
N° baskets:
3, FlexiDuo with Easy Glide
Basket colour:
Grey
Basket components colour:
Grey
Handle:
In plastic with stainless steel insert on upper and lower basket

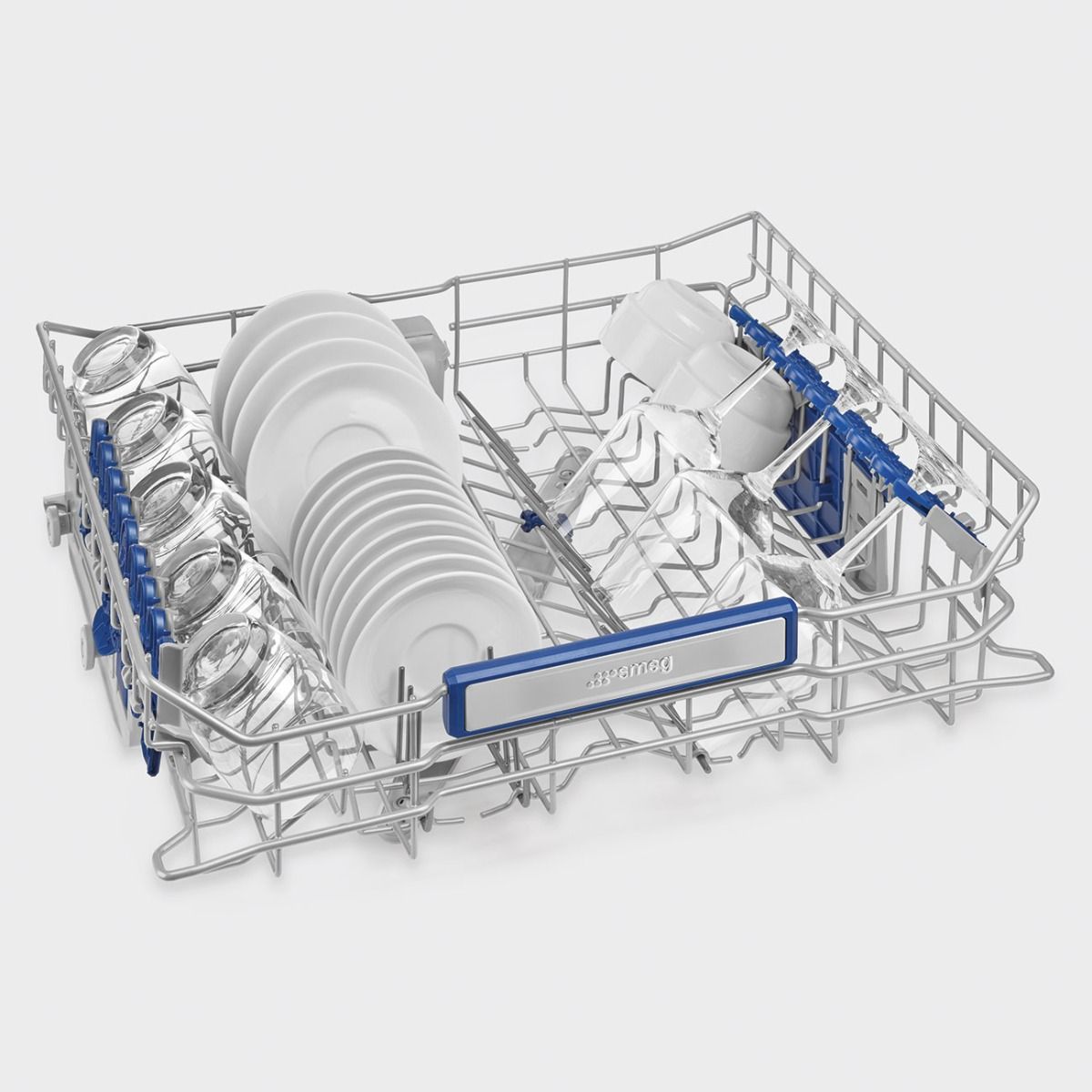

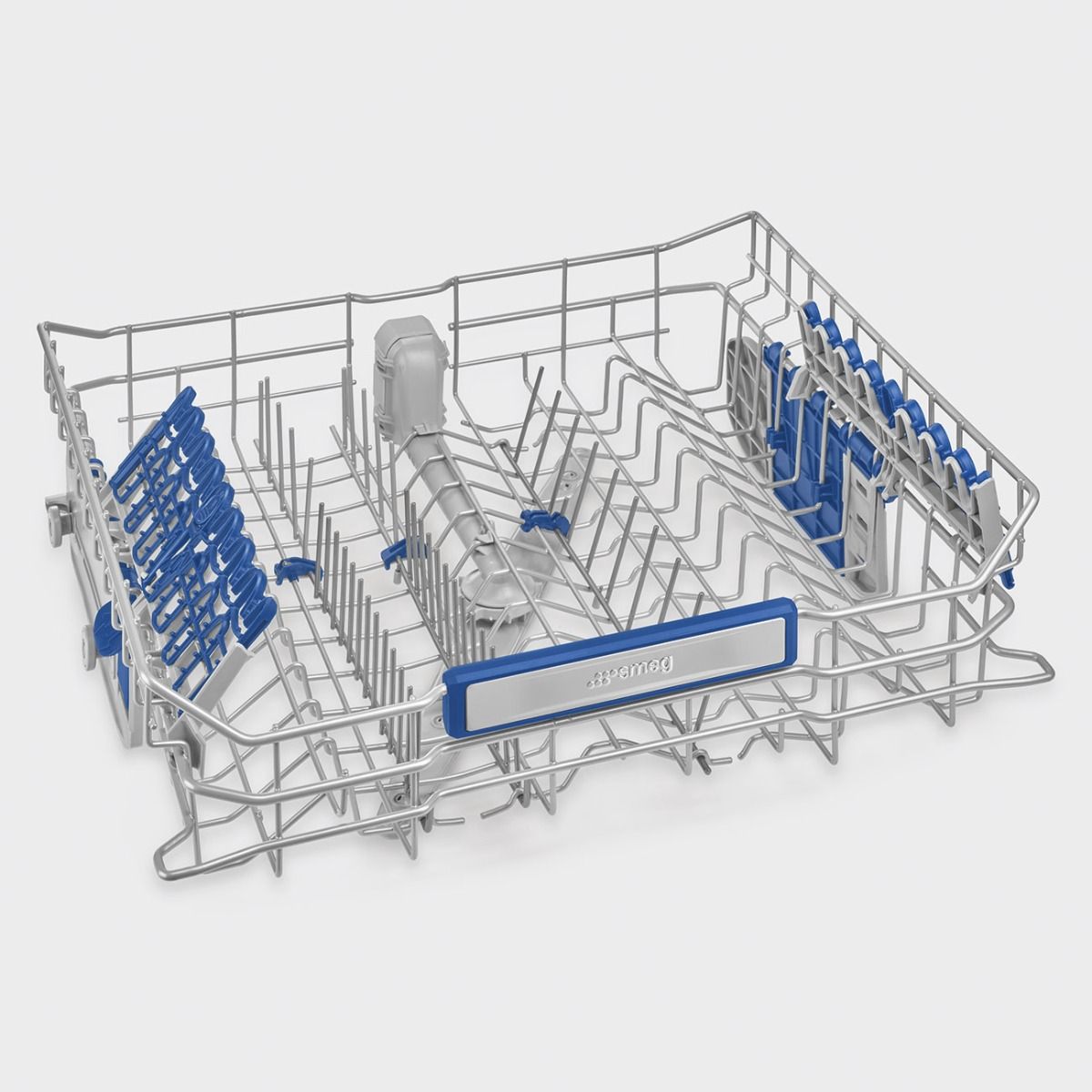

Upper Basket:
With 3 foldable racks

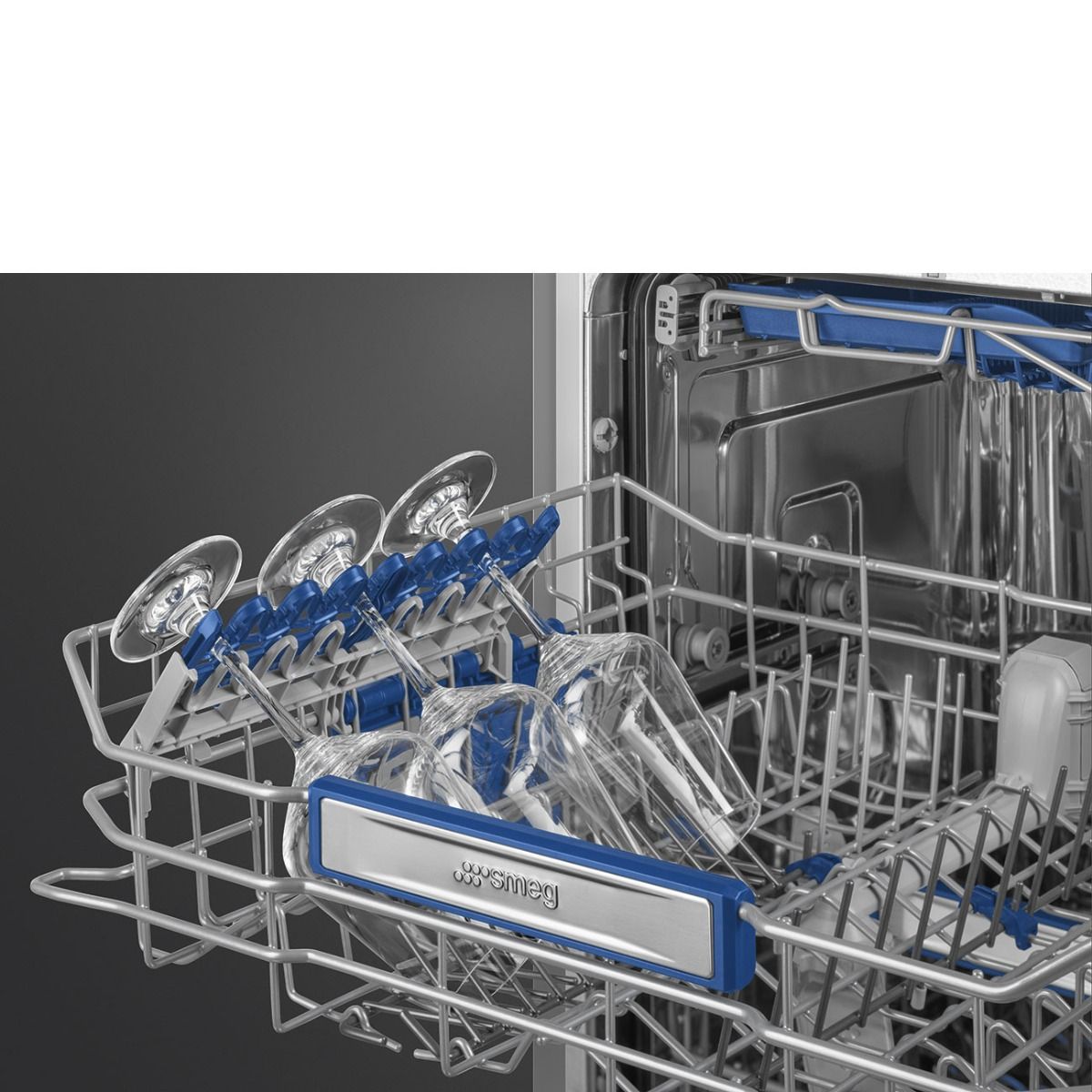

Glass holder:
Yes
Height adjustment of the upper basket:
On three levels
Sliding Guides Extra Glide:
Yes

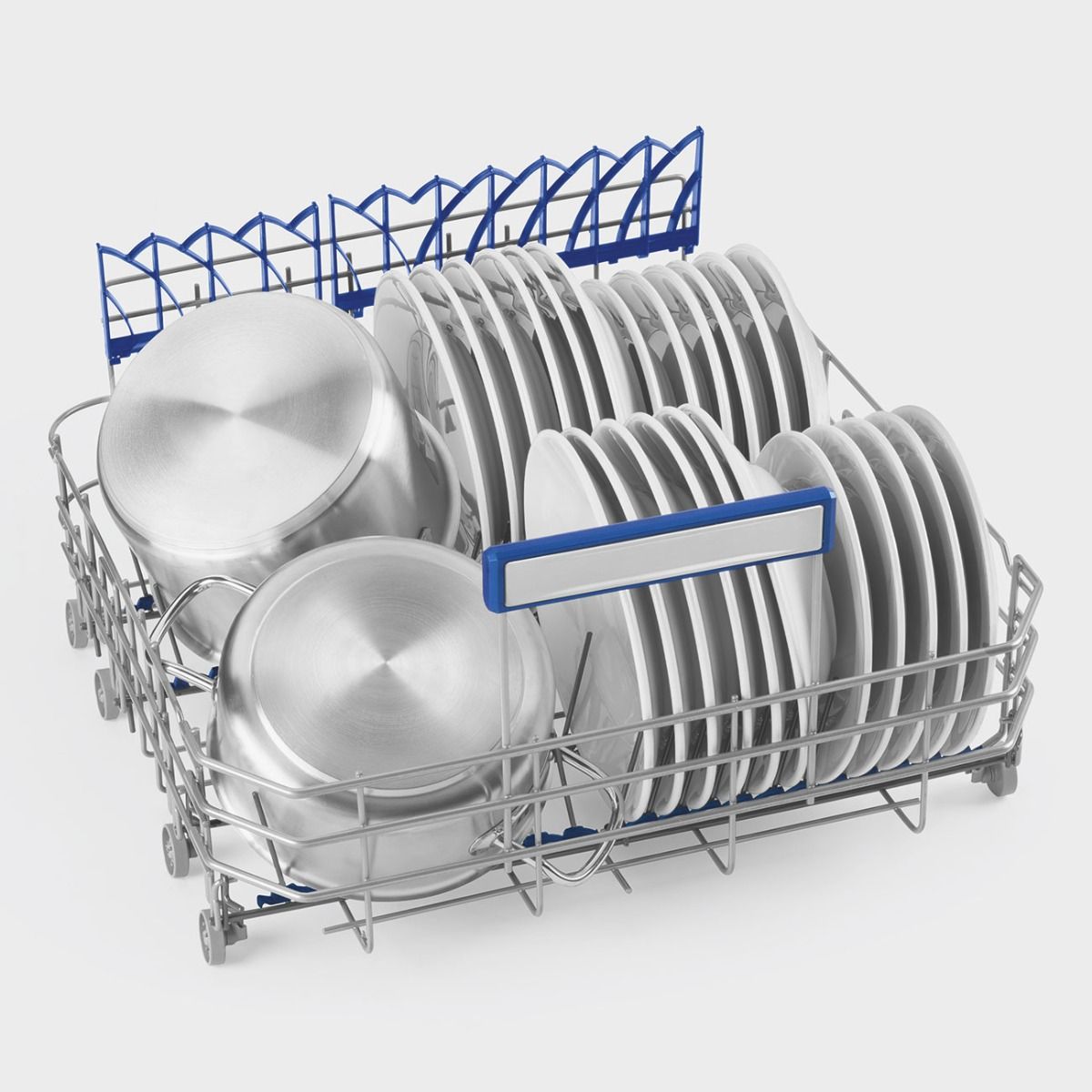

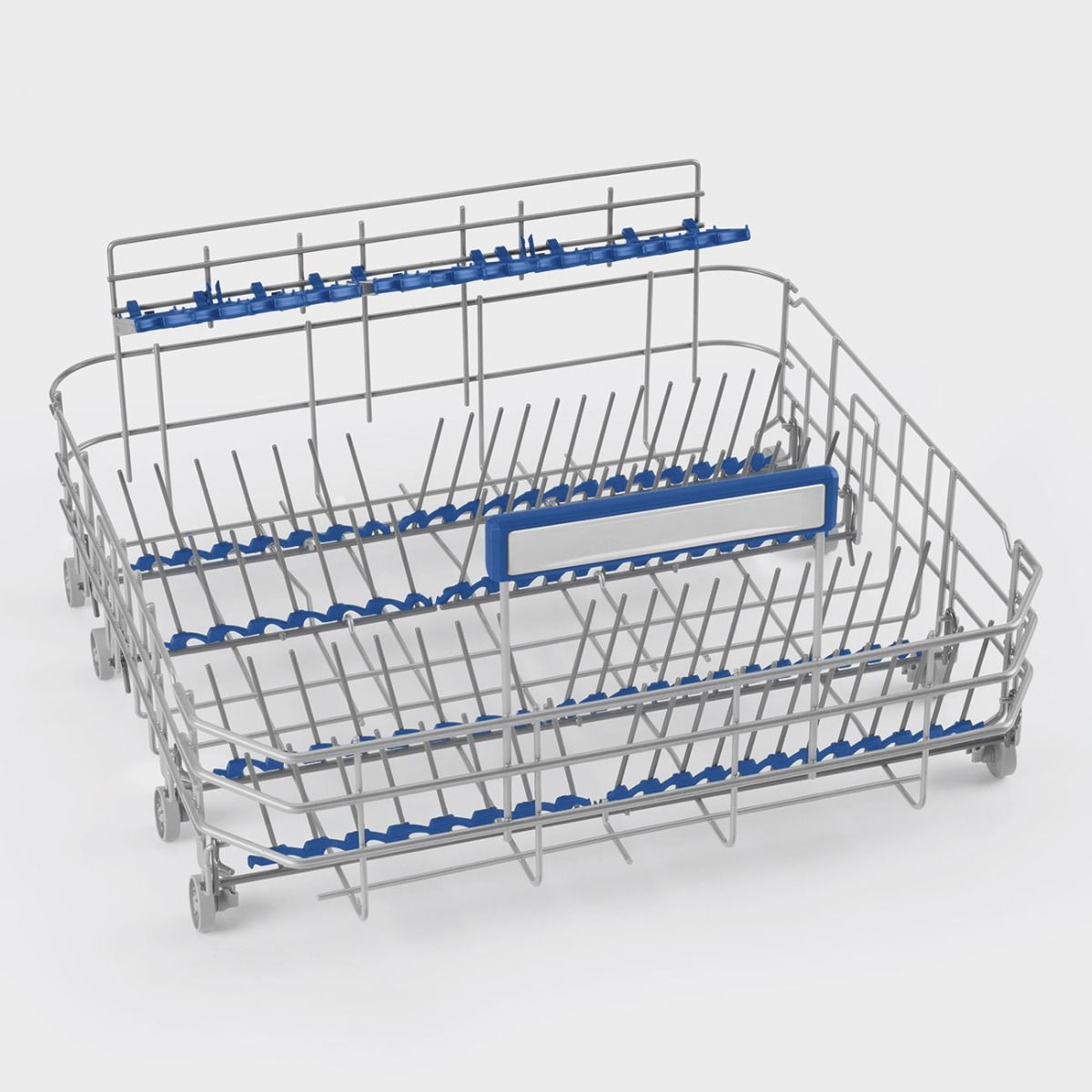

Lower Basket:
With 4 foldable racks
Largest loadable dish in upper basket:
19,0 cm
Lower basket with anti-drip inserts:
Yes
Largest loadable dish in lower basket:
30,0 cm
Colour Inner Components:
Blue
TECHNICAL FEATURES
PLANETARIUM_WASHING_SYSTEM_72dpi Aquatest measures the clarity of the water during an auto program, and automatically ensures the minimum consumption of water and energy. Activelight is an led light which projects a red spot onto the floor beneath the dishwasher when the appliance is in use. Touch controls: Easy to use touch controls allow the appliance to be programmed at the touch of a button. Models with new Flexi Fit hinges are able to be installed in kitchens with a plinth of just
5cms. With this new hinge design, the panel has a sliding movement from the bottom to

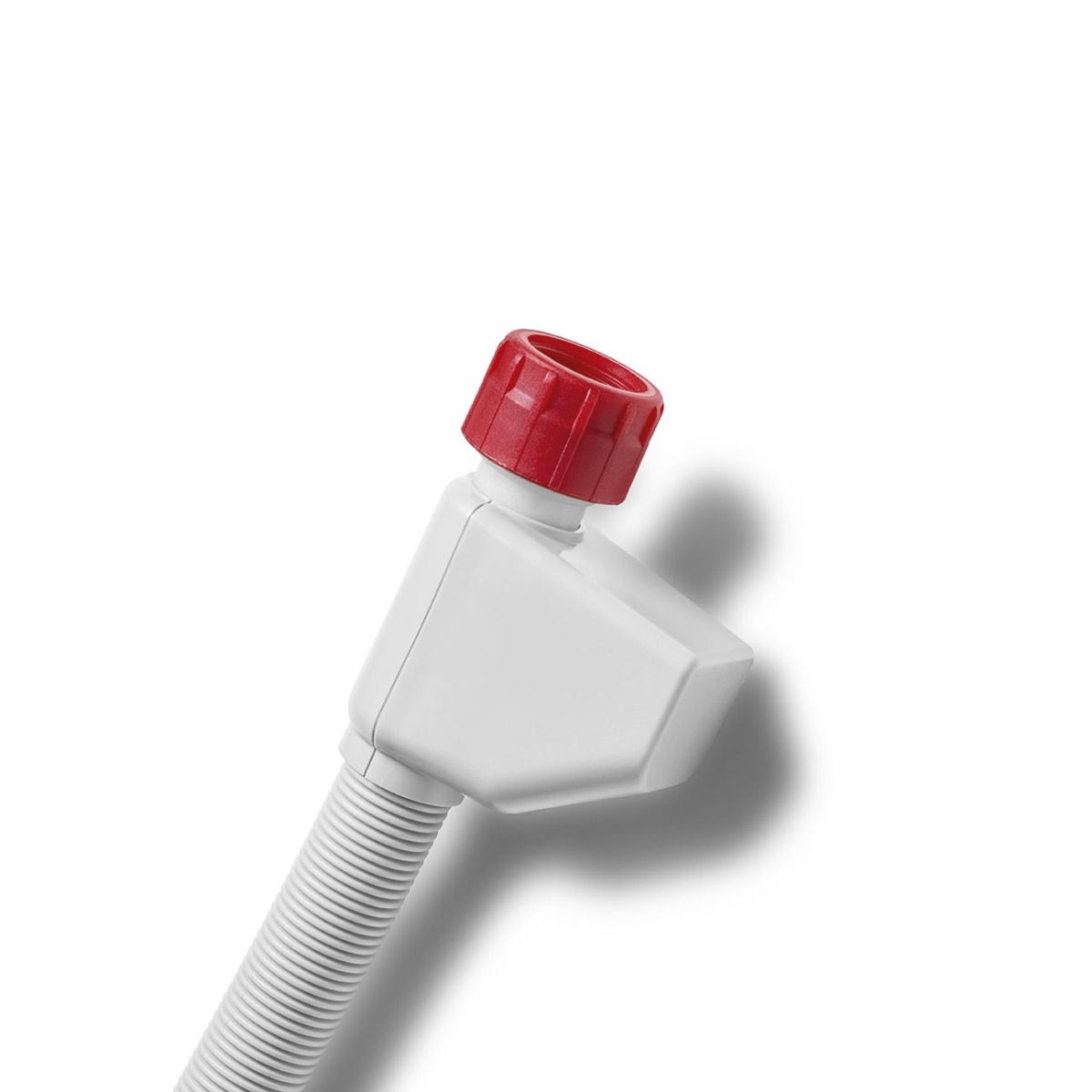

the top, avoiding any possible interference of the panel with the plinth. Total Acquastop: In addition to the partial Acquastop protection present in all Smeg dishwashers, some models have an electronic device fitted to the water intake hose, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately when necessary. Installation in column: Installation in column The work aimed at continuous improvement has allowed the creation of the second generation of the Inverter motor 2.0, characterised by greater efficiency and durability over time,
which allows very high performance and a lower energy consumption and noise level.
Controls:
Electronic touch control
Display:
Delayed start, Programme time indicator, Consumptions
Door opening system:
Yes
Display type:
LED display
On/off indicator:
Yes
Salt light indicator:
Light
Rinse aid indicator:
Light
End of cycle indicator:
ActiveLight
Washing system:
Planetarium
Drying system:
Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
Motor:
Inverter 2.0
Third spray arm:
Single
Water softener:
With electronic setting
Turbidity sensor Aquatest:
Yes
Flood protection system:
Total Acquastop
Water supply:
Single; cold/hot water max. 60°C - energysave with hot water up to 35%
Max water hardness:
100°fH;58°dH
Steam protection:
In plastic
Tank material:
Stainless steel
Filter:
Stainless steel
Concealed heating element:
Yes
Min. and max plinth height:
50 - 215 mm
Min. and max. frontal panel weight:
2 - 11 kg
Hinges:
Self balancing, Sliding, FLEXIFIT
Can be installed in-column:
Yes
Adjustable feet:
7cm, from 820 to 890 mm
Back feet adjustable from front:
Yes
PERFORMANCE / ENERGY LABEL NEW
Noise Level: Excellent insulation and special devices keep noise to a minimum. System WaterSave ensures the best washing results with minimal water consumption depending on the model of dishwasher. The symbols show the number of plate settings of the dishwasher. Energy efficiency class A
Energy Efficiency Class (Washing cycle):
A
Energy consumption [per 100 cycles, based on the eco programme]:
54 KWh
Rated capacity (ps):
14
Water consumption [per cycle]:
10.5 litres
Programme duration:
4:35 h:min
Airborne acoustical noise emissions (spinning phase):
42 dB(A) re 1 pW
Airborne acoustical noise emission class:
B
Energy efficiency Index (EEI) (Washing cycle):
31.8
ELECTRICAL CONNECTION
Connected power:
1800 W
Current:
10:00 AM
Voltage:
220-240 V
Type of connection:
Single-phase
Frequency (Hz):
50 Hz
Power supply cable length:
140 cm
FEATURES ATTRIBUTES
Noise level:
40 - 44 dB(A)
LOGISTIC INFORMATION
Dimensions of the product HxWxD (mm):
818x598x545
Net weight (kg):
44.000 kg
Gross weight (kg):
46.000 kg
Country of origin:
IT
Packed width:
650 mm
Packaged depth:
670 mm
Height (mm) packed:
890 mm
Dimensions of the packed product (mm):
890X650X670
Type of packaging:
Shrinkwrap
Packaging composition - paper & cardboard (kg):
0.000 kg
Packaging composition - polystyrene (kg):
1.145 kg
Packaging composition - wood (kg):
0.205 kg
Packaging composition - plastic (kg):
0.279 kg
Other accessories:
Salt funel
