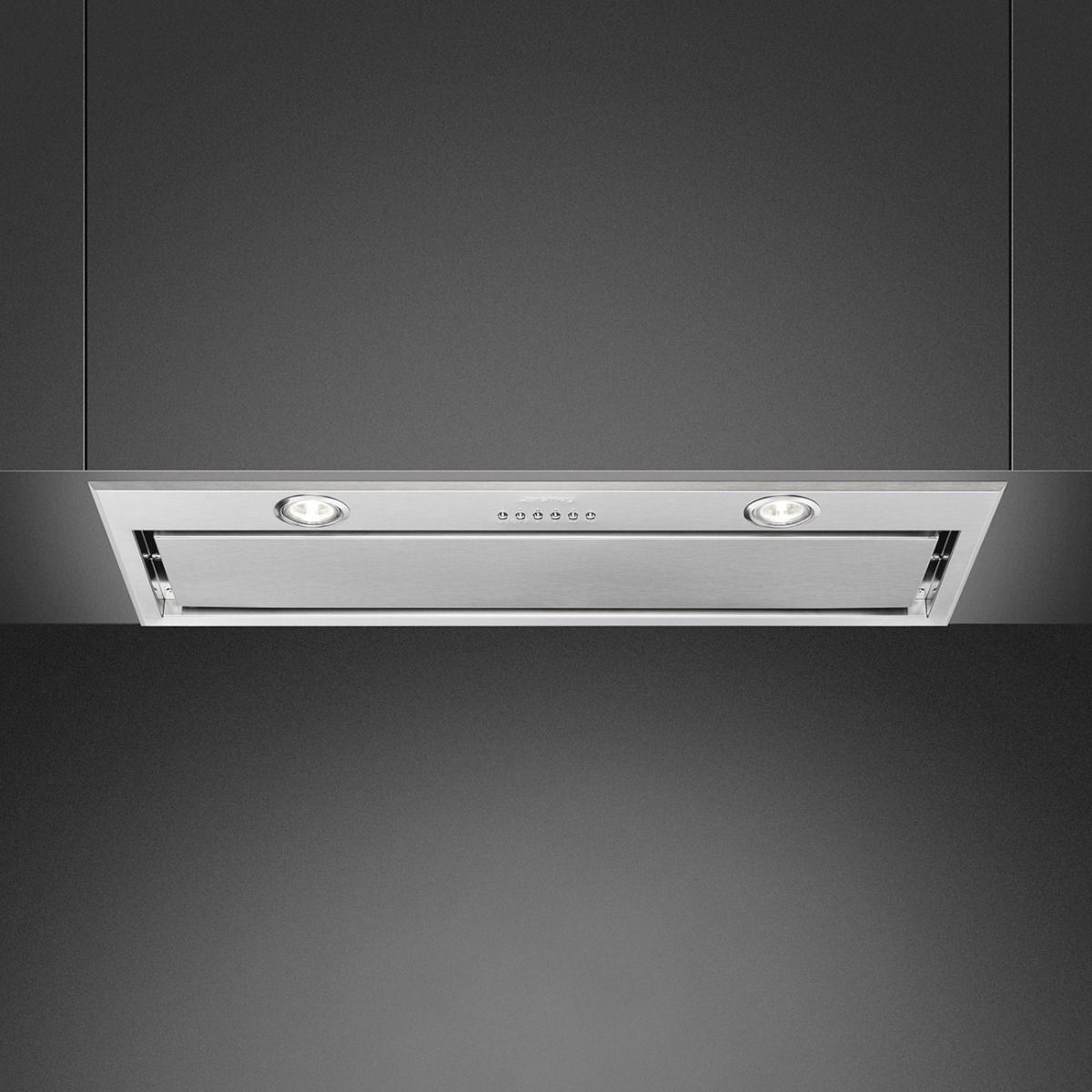

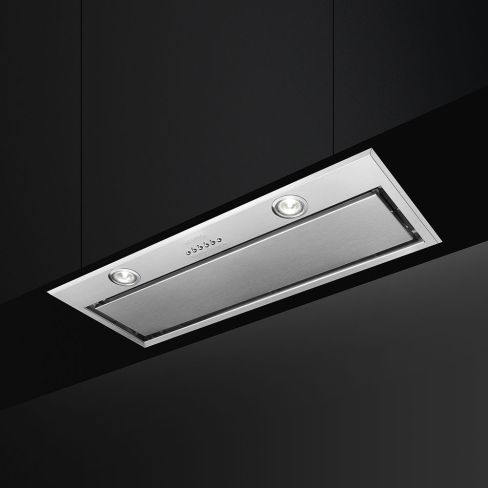

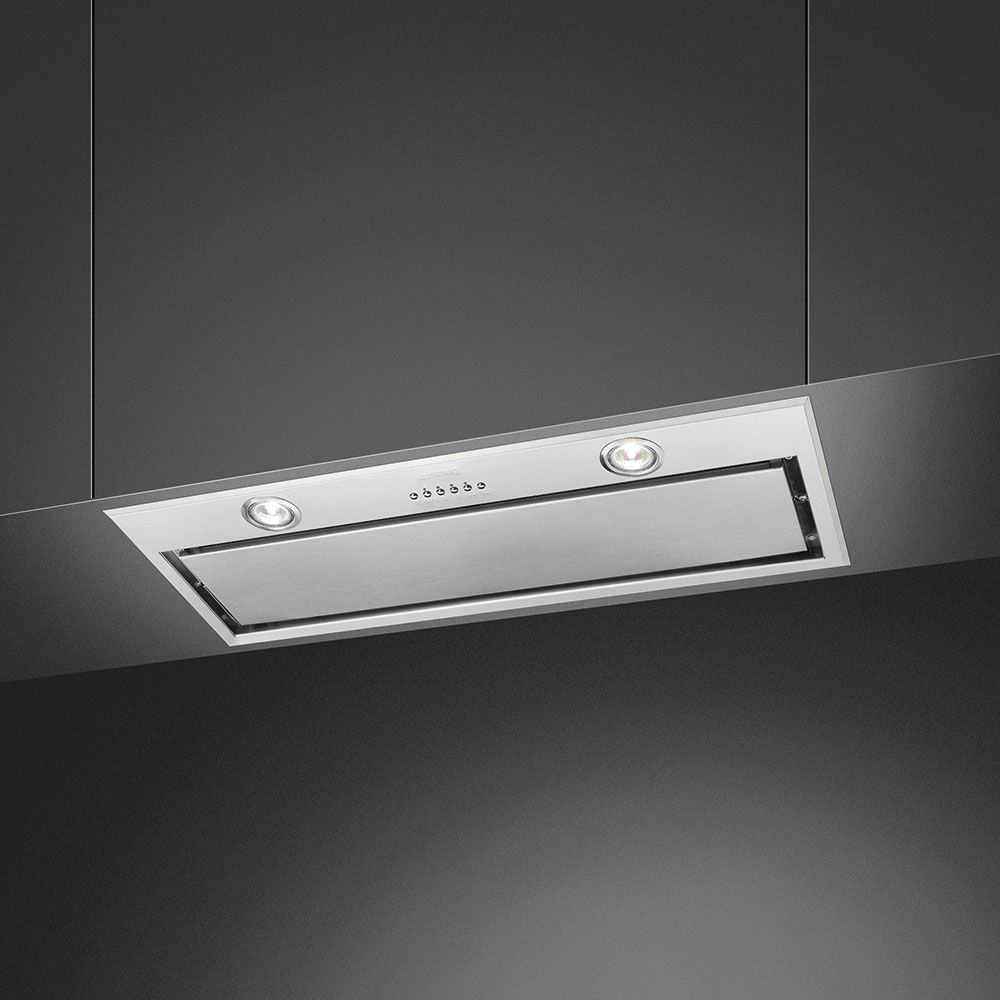

Smeg KSEG78PXE Hood
Model No:
KSEG78PXE
Dimensions:
335
mm (h) x
770
mm (w) x
300
mm (d)
Availability:
In stock (1)*
*Stock quantity shown may include display models which sometimes
cannot be sold due to their installation in our showrooms. Before
ordering, please call 01273 628618 (opt.1) to check availability.
cannot be sold due to their installation in our showrooms. Before
ordering, please call 01273 628618 (opt.1) to check availability.
£669.00
- Colour: Stainless steel
- 68db max noise level
- Touch control
- Three power levels
- LED Lighting
- Energy Rating
- 2 Year Warranty
Smeg KSEG78PXE Integrated 77cm Canopy Hood Stainless Steel
TYPE
Perimeter extraction panels: very efficient and aid noise reduction.
Product family: Hood
Hood Type: Integrated hood
Hood width: 77 cm
Extraction: Ducted out or re-circulation possible
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709224905
AESTHETICS
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Universal
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically.
No. of speeds: 3
Intensive speed: Yes
Time-setting options: Automatic switch-off
CONTROLS
Control setting: Electronic buttons
Led colour: White
TECHNICAL FEATURES
Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light power: 1 W
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 673 m³/h
Motor power: 275 W
No. of filters: 2
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Minimum distance from GAS hob: 750 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 650 mm
Non return valve: Yes
PERFORMANCE / ENERGY LABEL
A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): E
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 46 KWh/year
Fluid Dynamic Efficiency (FDE): 31.7
Lighting Efficiency (LE): 111.8 lux/W
Grease Filtering Efficiency (GFE): 56.9 %
Air flow at minumum speed (Qmin): 261 m³/h
Maximum extraction rate: 606 m³/h
Intensive extraction rate: 683 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 46 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 65 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 68 dB(A)
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 0.9
Measured air flow rate at best efficiency point (Qbep): 329 m³/h
Measured air pressure at best efficiency point (Qbep): 466 Pa
Measured electric power input at best efficiency point (Wbep): 134 W
Normal Power of the light system (Wl): 2 W
Average illumination of the light on the cooking surface (Emiddle): 246 lux
Sound power level at highest setting (Lwa): 65 dB(A)
ELECTRICAL CONNECTION
Nominal power: 277 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 261 m³/h
Noise level IEC 60704-2-13: 46 dB(A)
Power: 199 W
SPEED 2
Extraction rate IEC 61591: 436 m³/h
Noise level IEC 60704-2-13: 58 dB(A)
Power: 219 W
SPEED 3
Extraction rate IEC 61591: 606 m³/h
Noise level IEC 60704-2-13: 65 dB(A)
Power: 233 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 683 m³/h
Noise level IEC 60704-2-13: 68 dB(A)
Power: 228 W
LOGISTIC INFORMATION
Dimensions of the product (mm): 335x770x300
Width: 770 mm
Depth (mm): 300 mm
Product Height (mm): 335 mm
Net weight (kg): 11.150 kg
Gross weight (kg): 13.000 kg
TYPE
Perimeter extraction panels: very efficient and aid noise reduction.
Product family: Hood
Hood Type: Integrated hood
Hood width: 77 cm
Extraction: Ducted out or re-circulation possible
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709224905
AESTHETICS
Colour: Stainless steel
Finishing: Brushed
Aesthetics: Universal
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed
PROGRAMS / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically.
No. of speeds: 3
Intensive speed: Yes
Time-setting options: Automatic switch-off
CONTROLS
Control setting: Electronic buttons
Led colour: White
TECHNICAL FEATURES
Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights: 2
Light type: LED
Light power: 1 W
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 673 m³/h
Motor power: 275 W
No. of filters: 2
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Minimum distance from GAS hob: 750 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 650 mm
Non return valve: Yes
PERFORMANCE / ENERGY LABEL
A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): E
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 46 KWh/year
Fluid Dynamic Efficiency (FDE): 31.7
Lighting Efficiency (LE): 111.8 lux/W
Grease Filtering Efficiency (GFE): 56.9 %
Air flow at minumum speed (Qmin): 261 m³/h
Maximum extraction rate: 606 m³/h
Intensive extraction rate: 683 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 46 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 65 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 68 dB(A)
Power consumption in stand-by mode (Ps): 0.49 W
Time increase factor (F): 0.9
Measured air flow rate at best efficiency point (Qbep): 329 m³/h
Measured air pressure at best efficiency point (Qbep): 466 Pa
Measured electric power input at best efficiency point (Wbep): 134 W
Normal Power of the light system (Wl): 2 W
Average illumination of the light on the cooking surface (Emiddle): 246 lux
Sound power level at highest setting (Lwa): 65 dB(A)
ELECTRICAL CONNECTION
Nominal power: 277 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 261 m³/h
Noise level IEC 60704-2-13: 46 dB(A)
Power: 199 W
SPEED 2
Extraction rate IEC 61591: 436 m³/h
Noise level IEC 60704-2-13: 58 dB(A)
Power: 219 W
SPEED 3
Extraction rate IEC 61591: 606 m³/h
Noise level IEC 60704-2-13: 65 dB(A)
Power: 233 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 683 m³/h
Noise level IEC 60704-2-13: 68 dB(A)
Power: 228 W
LOGISTIC INFORMATION
Dimensions of the product (mm): 335x770x300
Width: 770 mm
Depth (mm): 300 mm
Product Height (mm): 335 mm
Net weight (kg): 11.150 kg
Gross weight (kg): 13.000 kg
| Product Name : | Smeg KSEG78PXE Hood |
|---|---|
| Colour : | Stainless steel |
| Noise Level : | 68db max noise level |
| Control Type : | Touch control |
| Power Levels : | Three power levels |
| Lighting : | LED Lighting |
| Manufacturer : | Smeg |
| Energy Rating : | [[A2]] Energy Rating |
| Warranty : | 2 Year Warranty |
