Smeg SIM1644DG Induction Hob

Smeg SIM1644DG 60cm Linea Induction Hob Neptune Grey Autovent 2.0
Hob
Universal
SIM1644DG
Product Family
Hob
Aesthetics
Universal
Type
Induction
Dimensions
60 cm
Built-in
Ultra-low profile or Fully Flushed

AUTO-VENT 2.0
Smart Bluetooth technology has been used to connect hobs and hoods with Auto-vent so that they work seamlessly together. Once cooking begins, the fan speed of the hood automatically adjusts according to the temperature and power selected on the hob. The hood will continue to automatically regulate the fan speed as required, depending on the cooking activities. A selection of induction hobs in the Smeg range work with Auto-vent 2.0 hoods.

TYPE
Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family:
Hob
Dimensions:
60 cm
Type:
Induction
Built-in:
Ultra-low profile or Fully Flushed
Power supply:
Electric
EAN code:
8.01771E+12
AESTHETICS
Evolution Slider totally Back-lighted ghost effect The slider control panel allows you to adjust the power simply by passing your finger across the touch
device. Darkness becomes light
Colour:
Neptune Grey
Finishing:
Glass
Aesthetics:
Universal
Material:
Glass
Glass Type:
Eclipse ceramic
Type of control setting:
Touch control back-lighted White
Control knobs position:
Front
Slider:
Yes
Slider:
White
Glass edge:
Straight edge
Serigraphy colour:
Black
PROGRAMS / FUNCTIONS
... Power booster: option allows the zone to work at full power when very intense cooking is necessary.
Total no. of cook zones:
4
No. of induction cook zones:
4
Time-setting options:
Automatic switch-off
No. of cooking zones with booster:
4
No. of Flexible zones:
2
Main on/off switch:
Yes
Power levels:
9
Auto-vent 2.0:
Yes
OPTIONS
... Multizone: allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility Quick selection, with one touch cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control (eg beef broth). CUT_OUT_STANDARD_72dpi Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time. Time elapsed: shows how long the cooking zone has been in use. Quick Start function: the chosen temperature is reached faster. The heating element works at maximum power until the right temperature is reached. Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed. TWIN_ZONE_72dpi Keep warm function: Keep warm function keeps the cooked food heated. In this mode the heating zone operates at a minimum capacity for 120 minutes and then turns off automatically. ... PAUSE_72dpi

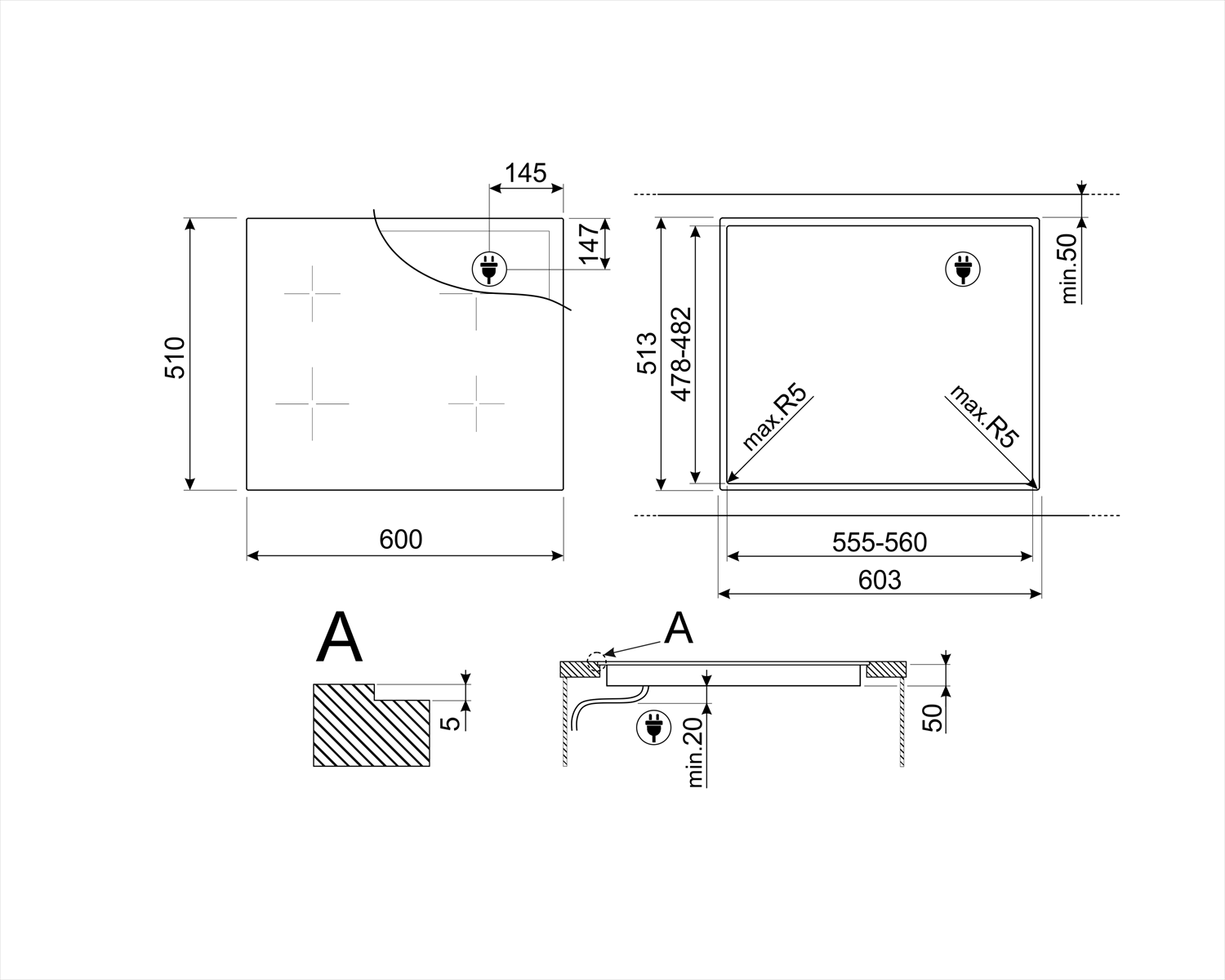

Standard cut out:
478-482x555-560 mm
Multizone Option:
Yes
Flexible Zone Type:
MultiZone
End cooking timer:
4
Pause option:
Yes
Minute minder:
1
End of cooking acoustic alarm:
Yes
Residual time indicator:
Yes
Limited Power Consumption Mode:
Yes advance
Limited Power Consumption Mode in W:
2400 a 7400 - step 100 W
Show Room Demo Option:
Yes
Grill function:
Yes
Control Lock / Child Safety:
Yes
Keep warm automatic function:
Yes
Bridge option:
Yes
Quick start:
Yes
Rapid level selection:
Yes
COOKING ZONES
1st zone position:
Front left
2nd zone position:
Rear left
3rd zone position:
Rear right
4th zone position:
Front right
1st zone type:
Induction - Multizone
2nd zone type:
Induction - multizone
3rd zone type:
Induction - Multizone
4th zone tipe:
Induction - multizone
1st zone dimensions:
21.5x18.0 cm
2nd zone dimensions:
21.5x18.0 cm
3rd zone dimensions:
21.5x18.0 cm
4th zone dimensions:
21.5x18.0 cm
Left Multizone dimension:
38.5x23.0 cm
Right Multizone dimension:
38.5x23.0 cm
1st zone power:
2.10 kW
2nd zone power:
2.10 kW
3rd zone power:
2.10 kW
4th zone power:
2.10 kW
Power double booster 1° zone:
3 kW
Power double booster 2° zone:
3 kW
Power double booster 3° zone:
3 kW
1st zone booster power:
2.50 kW
Power double booster 4° zone:
3 kW
2nd zone booster power:
2.50 kW
3rd zone booster power:
2.50 kW
4th zone booster power:
2.50 kW
Booster power left Multizone:
3.70 kW
Booster power right Multizone:
3.70 kW
TECHNICAL FEATURES
Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit. Overfill protection: The special overfill protection shuts down the stove in the presence of overflow of liquids. ... Indication of residual heat: After the glass ceramic hob is switched off the residual heat indicator shows which of the heating zones still remains hot. When the temperature drops below 60 ° C, the indicator goes out. ...
Automatic setting according to pan dimension:
Yes
Permanent Automatic Pot Detection with indication of the relative control:
Yes
Automatic pan detection:
Yes, min 9 cm
Automatic switch off when overheat:
Yes
Automatic switch off when overflow:
Yes
Residual heat indicator:
Yes
Protection against accidental start up:
Yes
PERFORMANCE / ENERGY LABEL
2nd zone energy consumption:
198 Wh/Kg
Energy consumption zone 3:
191 Wh/Kg
Energy consumption zone 4:
195 Wh/Kg
ELECTRICAL CONNECTION
Nominal power (W):
7400 W
Voltage (V):
220-240 V
Voltage 2 (V):
380-415 V
Frequency (Hz):
50/60 Hz
Type of electric cable:
Single and Double phase
Power supply cable length:
120 cm
LOGISTIC INFORMATION
Dimensions of the product (mm):
53x600x510
Depth (mm):
510 mm
Width (mm):
600 mm
Product Height (mm):
53 mm
Net weight (kg):
9.500 kg
Gross weight (kg):
10.500 kg
